Overview

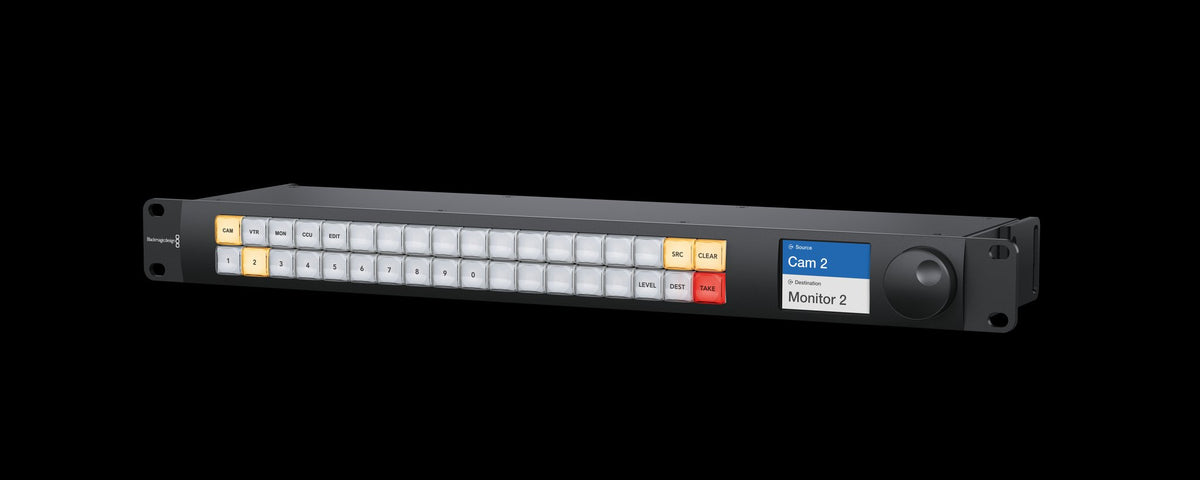

Videohub Master Control Pro
When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Plus Videohub Master Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
Technical specifications
- Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
- RS-422: In and Out (for future implementation)
- Computer Interface: USB-C for configuration and software updates.
- Power: 100 - 240 AC
- Precision Time Protocol: IEEE 1588‑2008 (PTP v2)
- NMOS IS-04 Discovery and Registration: v1.3.2
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP‑002‑01: Natural Grouping
- NMOS BCP‑004‑01: Receiver capabilities
- Power Fail Requirements: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
- Power Supply: Internal 100 - 240 V AC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
