Product information
Overview

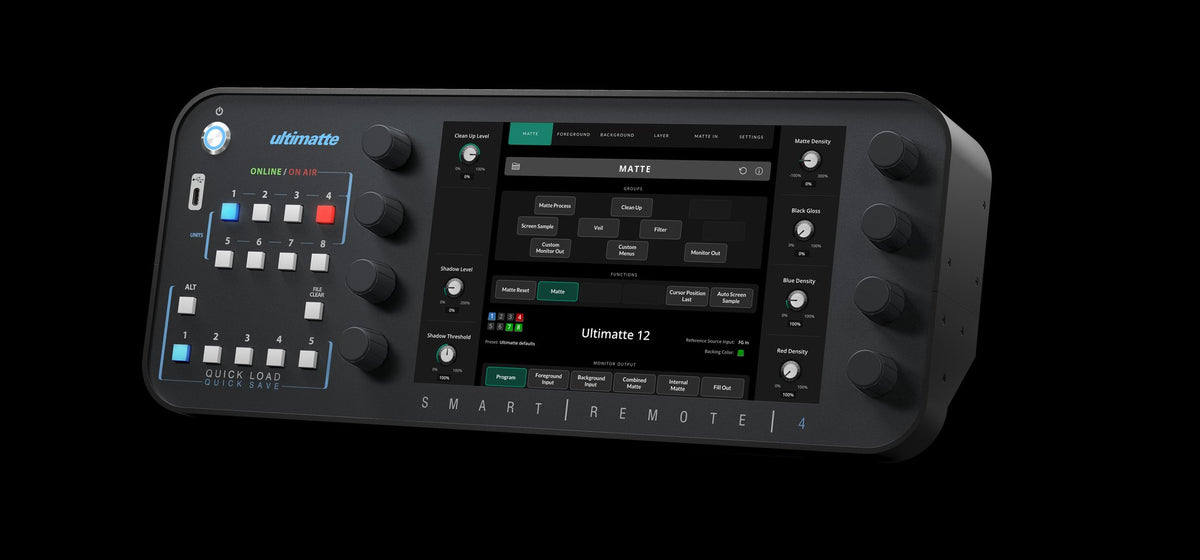

Ultimatte Smart Remote 4 G2
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!
Technical specifications
- HDMI Video Outputs: 1 (1080p60)
- Computer Interface: 2 x Rear USB-C 3.0 for connecting external mouse and keyboard to enable Smart Remote control, and for attaching USB-C storage devices to load still images, save/load presets and save/load archives.
- Ethernet: 2 x 10/100/1000 Mbps Ethernet ports for connecting to LAN networks to control of the Ultimatte 12 and to perform software updates using the Ultimatte Setup utility.
- Rotary Knobs: 8 x rotary knobs for adjusting parameters.
- Unit ID Buttons: 8 x buttons. Illuminated blue for active.
- Unit ID LED Indicators: Illuminated green for online and red for on air.
- Alt + Quick Load/Save Buttons: Alt button plus 5 buttons for saving presets.
- Quick Load/Save Buttons: 5 x buttons for loading presets.
- File Clear Button: 1 x button for Auto Key.
- Alt + File Clear: Alt button plus file clear button for Auto Key using some user defined presets.
- Customizable Menus: 4 x menus for building your own menu with your most used controls.
- LED Control: User adjustable brightness control for LEDs.
- Software Updates: Software updates via USB or Ethernet connection using Ultimatte Setup utility.
- Touchscreen: 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
- Power Supply: 1 x Locking 5.5mm barrel +12V DC power input for external power supply or battery use.
- Power Usage: 24W max
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing.
For further information, see Blackmagic Design.
