Overview

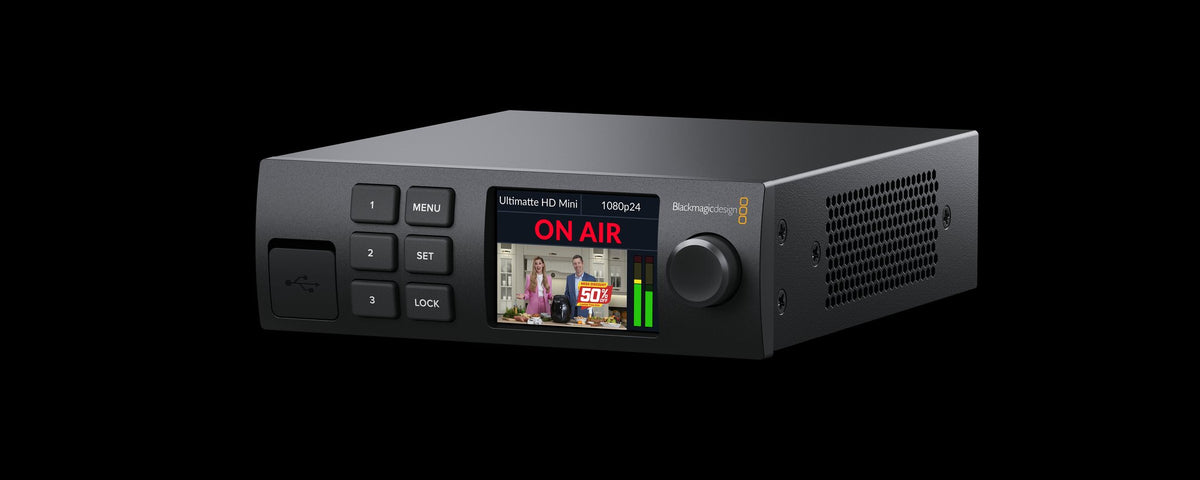

Ultimatte 12 HD Mini
Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.
Technical specifications
- SDI Video Inputs: 2
- SDI Video Outputs: 2
- HDMI Video Inputs: 2
- HDMI Video Outputs: 1
- Video Input Re-Sync: On all inputs.
- SDI Rates: 270Mb, 1.5G, 3G.
- Ethernet: Up to 1Gb/s for device control and loading stills into Media Pool.
- Computer Interface: 1 x USB-C 3.0 for device configuration and software updates.
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 601, REC 709.
- Multiple Rate Support: Auto detection of SD and HD.
- Foreground: 1 x HDMI In
- Background: 1 x HDMI In
- Background Matte: Internal Window
- Garbage Matte: Internal Window
- Holdout Matte: Internal Window
- Layer: Still from Media Pool
- Layer Matte: Internal Window
- Program: 1 x HDMI
- Monitor In: 1 x 3G-SDI
- Monitor Out: 1 x 3G-SDI
- Background Still Image Formats: TGA, TIFF, BMP, PNG, JPG.
- Background with Alpha Still Image Formats: TGA, TIFF, BMP.
- Layer Image Still Image Formats: TGA, TIFF, BMP, PNG, JPG.
- Layer with Alpha Still Image Formats: TGA, TIFF, BMP.
- Garbage Matte Still Image Formats: TIFF, BMP, PNG, JPG.
- Holdout Matte Still Image Formats: TIFF, BMP, PNG, JPG.
- Media Pool Memory: 6GB non-volatile internal storage.
- Front Panel: 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
- Control Connection: Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
- Software Control: Ultimatte Software Control
- Hardware Control Panel: Ultimatte Smart Remote 4
- Camera Control: Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers.
- Custom Control: Ethernet protocol included in the Ultimatte instruction manual.
- Software Updates: Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
- Configuration: Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
For further information, see Blackmagic Design.
