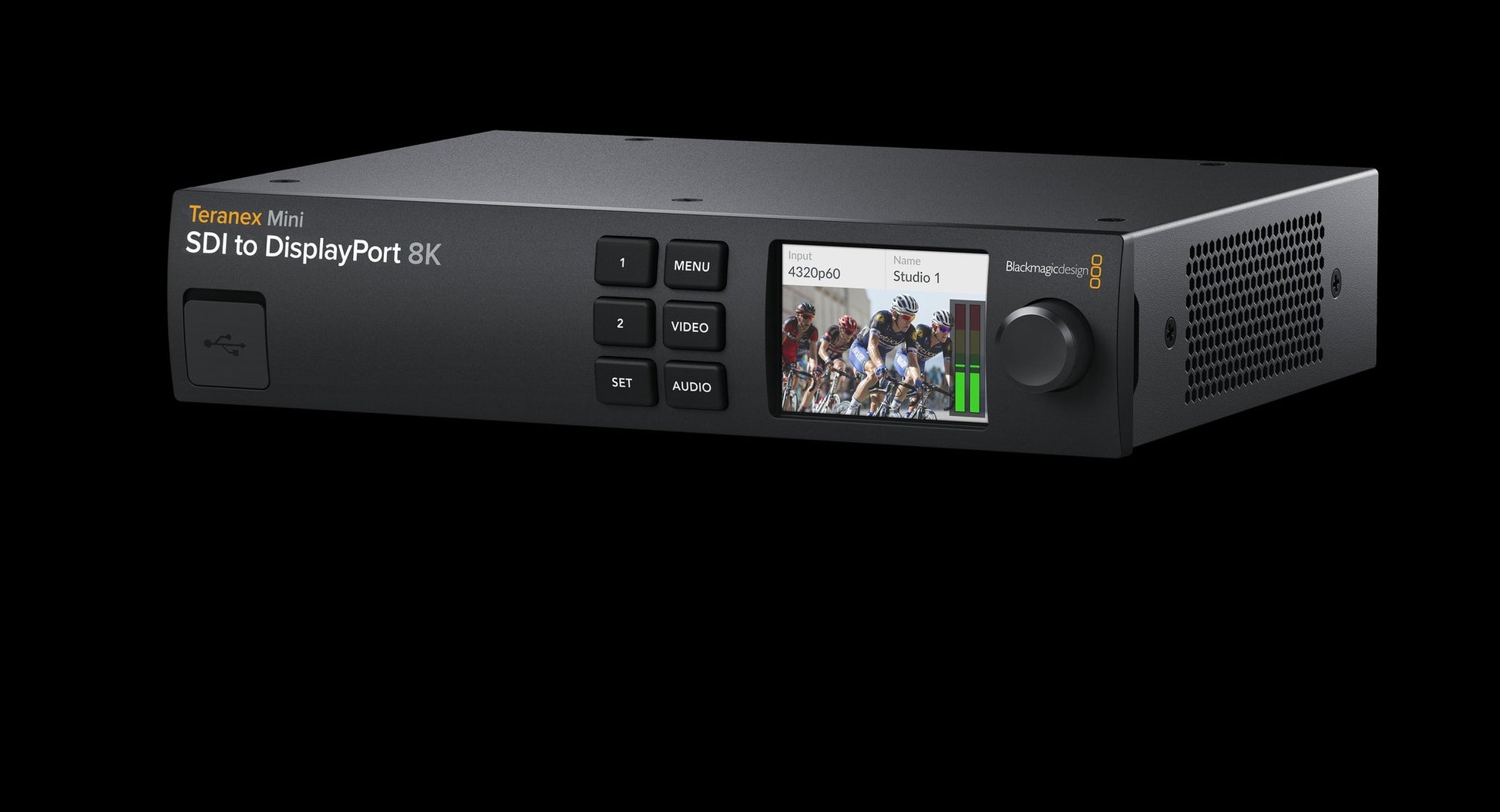

Teranex Mini SDI to DisplayPort 8K HDR

Advanced 8K DisplayPort monitoring solution for converting SDI sources to DisplayPort in all HD, Ultra HD and 8K formats up to 4320p60. Includes 2 full size DisplayPort and 1 USB‑C DisplayPort output connections, built in down converter, HDR formats, 33 point 10‑bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration for compatible monitors, and more.

Technical specifications

• SDI Video Inputs: 4 x 12G-SDI HD/2K/4K/8K auto switching.
• SDI Video Outputs: 4 x 12G-SDI loop output.
• DisplayPort Video Outputs: 2 x full size DisplayPort connectors
• Analog Audio Outputs: 2 channels analog audio via RCA connectors.
• Embedded Audio Support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs.
• Multi Rate Support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI.
• Updates and Configuration: Front USB-C or Ethernet.
• Reclocking: Yes
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
• 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
• SDI Video Rates: SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB.
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 5K and 6K Display Standards: Based on the EDID of the DisplayPort Monitor.
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
• DisplayPort Color Space: REC 709, REC 2020
• DisplayPort Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
• Scopes: Waveform, RGB/YUV Parade, Vector, Histogram
• Viewing Modes: Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules.
• Conversion: Output can be set to SDR, HLG or PQ
• Software Control: Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet.
• Internal Software Upgrade: Via included updater application.
• Settings Control: 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.
• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Consumption: 35 Watts
• Operational Voltage Range: 100 - 240V AC
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing

For further information, see Blackmagic Design.
