Overview

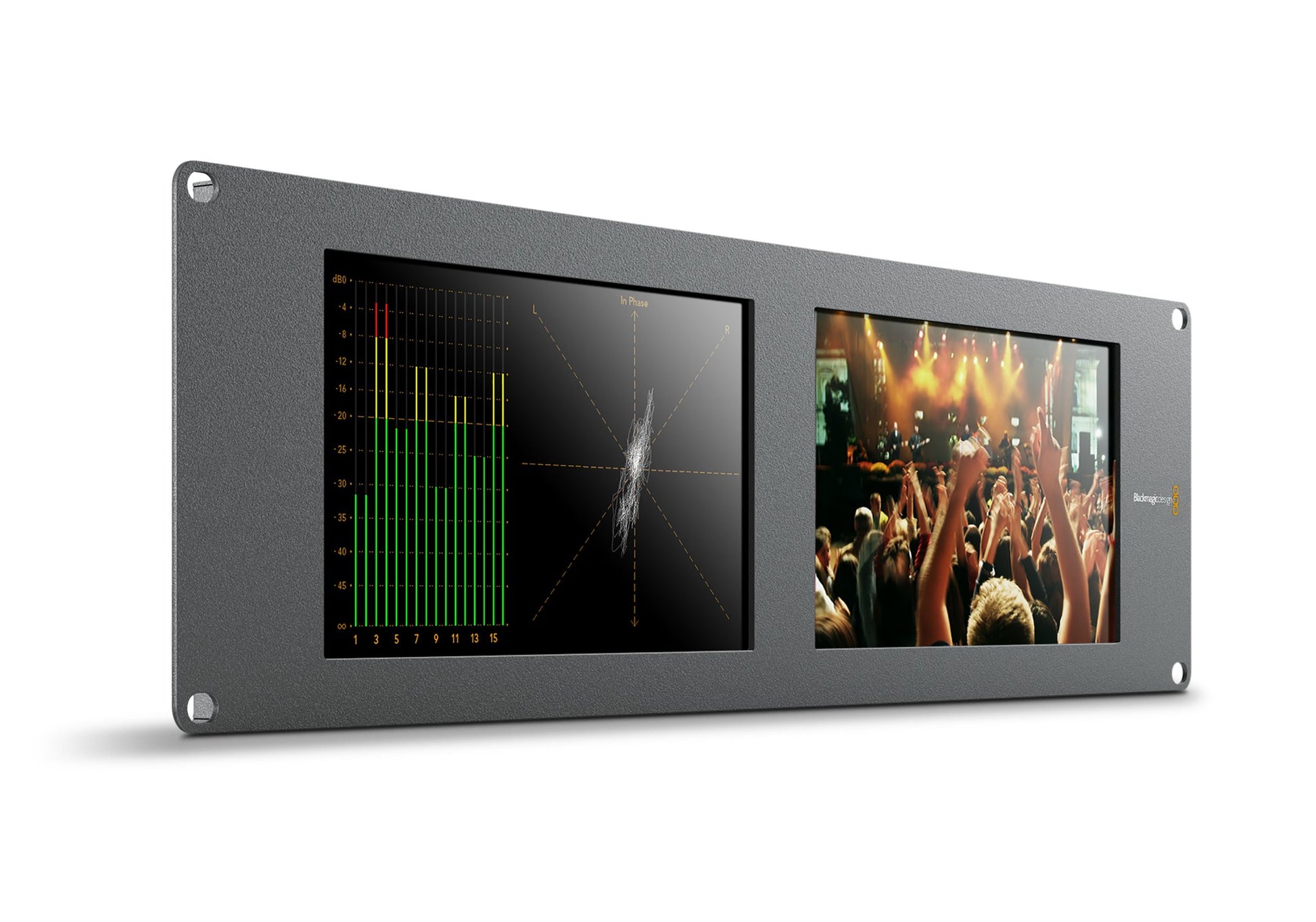

SmartView Duo
Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!
Technical specifications
- SDI Video Input: Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
- Multi Rate Support: Auto detection of 2K, HD or standard definition inputs.
- Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
- Ethernet: 10/100 BaseT with loop through.
- Tally: 9-pin D connector
- SDI Compliance: SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M .
- SDI Color Space: REC 601 , REC 709
- SDI Auto Switching: Automatically selects between SD, HD and 3 Gb/s SDI .
- Video Sampling: 4:2:2 and 4:4:4
- SDI Format Support: 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Internal Software Upgrade: Via included firmware updater software.
- SmartView Utility Software: Via USB or Ethernet.
- Display Element: TFT Active Matrix LCD.
- Display Resolution: 800 x 480 pixels
- Response: < 15 ms
- Contrast Ratio: Typically 500:1
- Color Depth: 16.7 Million Colors.
- Display Orientation: Displays can rotate upside down for optimum viewing angle.
- Power Supply: 12V universal power supply included with international socket adapters for all countries.
- Power Consumption: < 20 Watts
- Operational Voltage Range: 12V - 15V
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
For further information, see Blackmagic Design.
