Product information
Overview

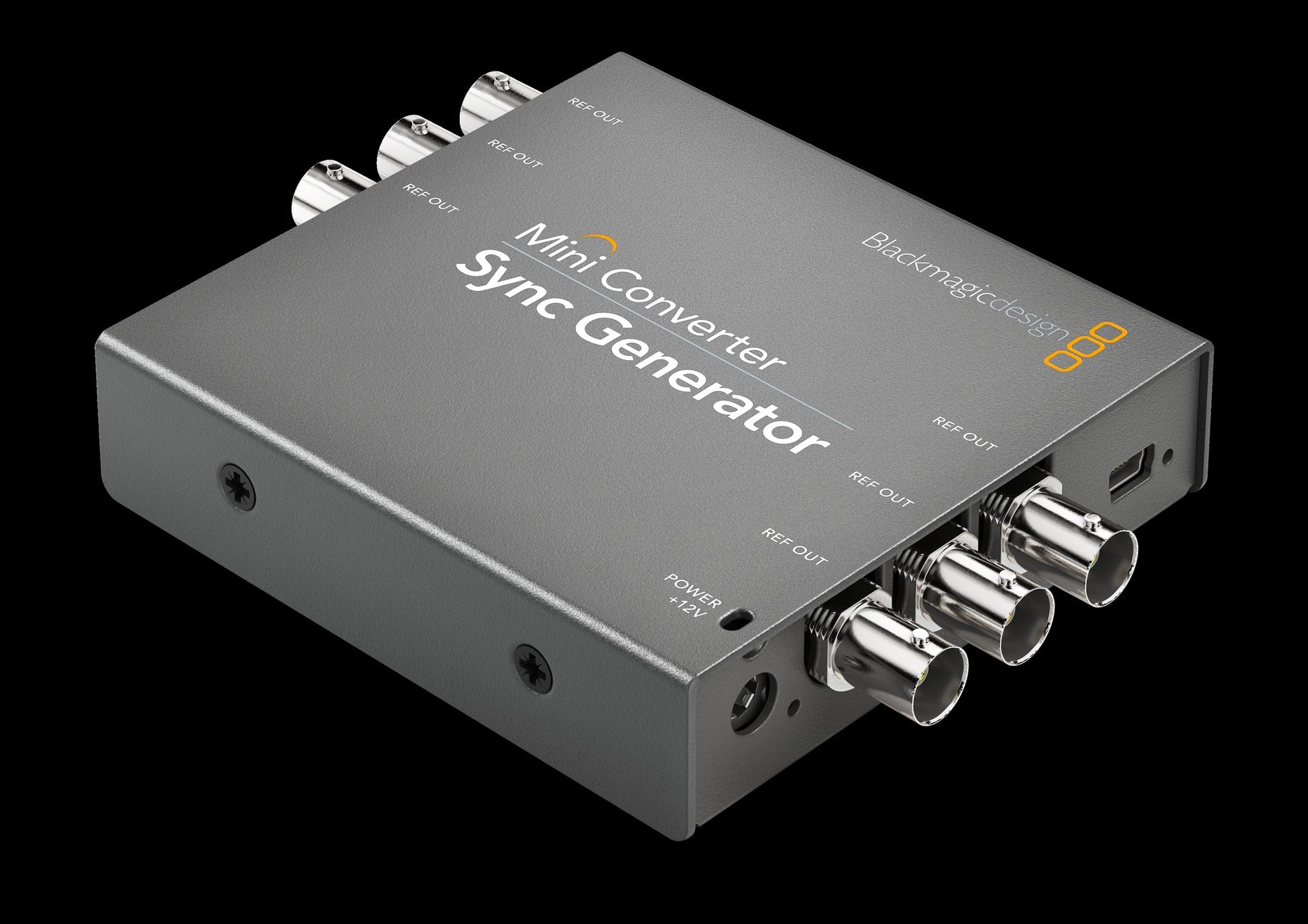

Mini Converter Sync Generator
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
Technical specifications
- Analog Video Outputs: 6 x common Blackburst or Tri Level reference outputs.
- SDI Rates: 270Mb, 1.5G.
- Multi Rate Support: Via mini switches
- Updates and Configuration: USB
- Analog Format Support: 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
- Software Control: Mac™ and Windows™ software upgrade via USB.
- Internal Software Upgrade: Via included updater application.
- Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
- Power Consumption: 3.00 Watts
- Operational Voltage Range: 12V DC
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
For further information, see Blackmagic Design.
