Aputure

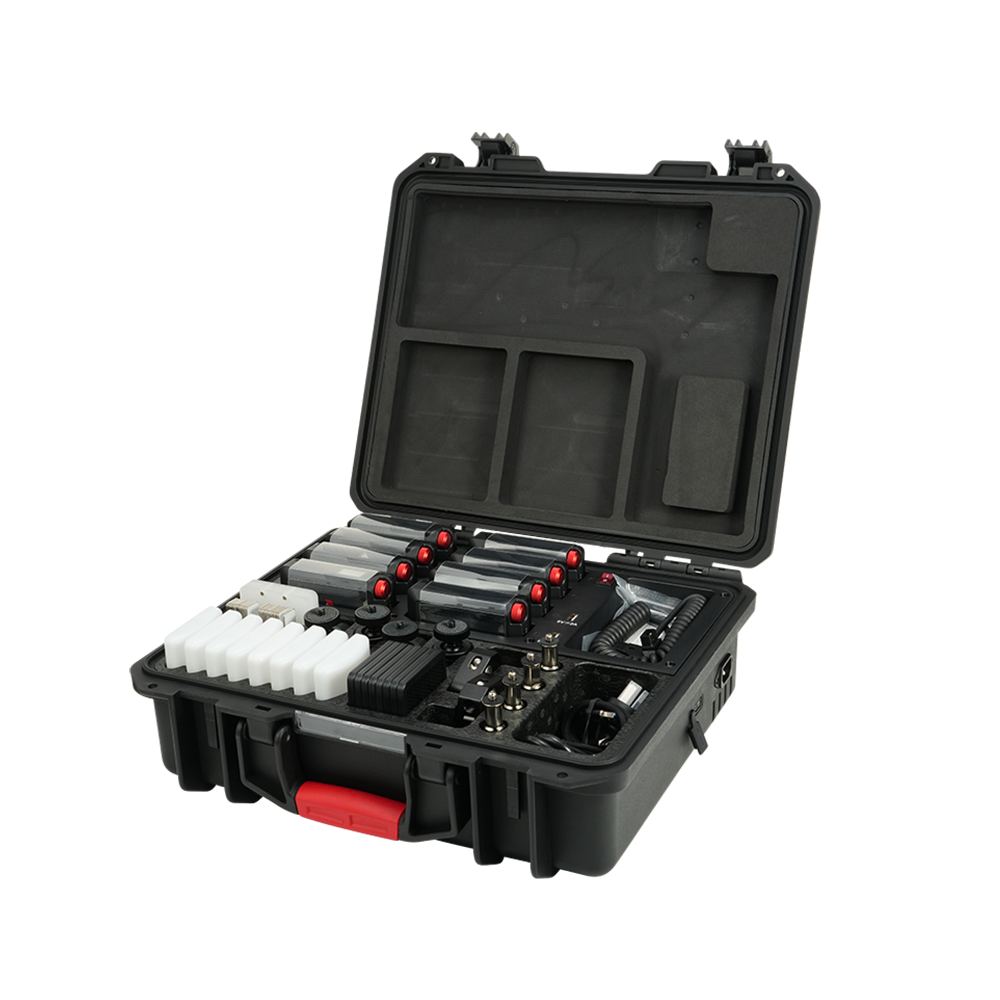

MC PRO 8-LIGHT KIT

MC PRO 8-LIGHT KIT

SKU:

Regular price $520.00 AUD
Regular price Sale price $520.00 AUD
Sale Sold out

Mini Professional LED Charging Kit

SPECIFICATIONS

TECHNICAL SPECFICIATIONS

CCT 2,000K - 10,000K
CRI 96
TLCI 96
CQS 95
SSI (D56) 72
SSI (Tungsten) 82
TM-30 RF (Average) 94
TM-30 RG (Average) 103
Lumens 563 lm
Max Power Output (Fixture) 5W
Max Power Output (Case) 100W
Max Power Consumption (Fixture) 7W
Max Power Consumption (Case) 129W
Max Operating Current 0.84A
Operating Current (Fixture) 0.84A
Operating Curent (Case) 1.8A
Operating Voltage (Fixture) 3.0-4.2V
Operating Voltage (Case) 12-28V
Charging Input USB Type-C (5V/2A), Contact Charger
AC Input Voltage 100-240V, 50/60Hz
Lithium-Polymer Battery 4,200mAh / 3.7-4.2V, 15.5Wh
Battery Life (Fixture) Approx. 120 Mins @ Max Output
Charge Time Approx. 90 Mins (5V/2A)
IP Rating IP65
Operating Temeprature -20ºC~45ºC / -68ºF~113ºF
Dimming 0-100%
Control Methods On-board,Sidus Link App, DMX/RDM, LumenRadio CRMX
Wireless Range (Bluetooth) ≤80m / ≤262ft
Wireless Range (LumenRadio) ≤100m / ≤328ft
Screen Type TFT
Firmware Upgradeable Sidus Link
Cooling Method Passive Cooling
Dimensions (Case) 43.5 x 38.5 x 15.0cm / 17.1 x 15.1 x 5.9in
Dimensions (Fixture) 10.8 x 7.0 x 2.5cm / 4.25 x 2.76 x 0.98in
Weight (Case) 5.2kg / 11.5lbs
Weight (Fixture) 247g / 0.54lbs
Weight (Total) 9.3kg / 20.5lbs

WHAT'S IN THE BOX

8x MC Pro
8x MC Pro Flat Diffuser
8x MC Pro Dome Diffuser
8x MC Pro 30º Light Control Grid
4x Cold Shoe Ball Head
4x 1/4-20in Screw to Magnetic Plate Adapter
4x 1/4-20in Screw to Baby Pin Adapter
2x 1/4-20in Articulating Arm to Clamp Adapter
2x USB Type-C Charging Cable
32x Adhesive Magnetic Plate
1x Locking IEC C13 AC Power Cable
1x D-Tap to D-Tap Power Cable
1x MC Pro 8-Light Charging Case

PHOTOMETRICS

CCT Distance Bare Bulb Dome Diffuser Flat Diffuser 30º Grid Bubble Diffuser*
2,000K 0.5m 1,027 lux / 95 fc 253 lux / 24 fc 463 lux / 43 fc 838 lux / 78 fc 194 lux / 18 fc
1m 257 lux / 24 fc 63 lux / 6 fc 116 lux / 11 fc 210 lux / 20 fc 49 lux / 5 fc
2,700K 0.5m 1,244 lux / 116 fc 297 lux / 28 fc 543 lux / 50 fc 1,014 lux / 94 fc 226 lux / 21 fc
1m 311 lux / 29 fc 74 lux / 7 fc 136 lux / 13 fc 254 lux / 24 fc 57 lux / 5 fc
3,200K 0.5m 1,459 lux / 136 fc 344 lux / 32 fc 628 lux / 58 fc 1,183 lux / 110 fc 262 lux / 24 fc
1m 365 lux / 34 fc 86 lux / 8 fc 157 lux / 15 fc 296 lux / 27 fc 66 lux / 6 fc
4,300K 0.5m 1,597 lux / 148 fc 384 lux / 36 fc 696 lux / 65 fc 1,314 lux / 122 fc 291 lux / 27 fc
1m 399 lux / 37 fc 96 lux / 9 fc 174 lu / 16 fc 328 lux / 30 fc 73 lux / 7 fc
5,600K 0.5m 1,585 lux / 147 fc 392 lux / 36 fc 706 lux / 66 fc 1,322 lux / 123 fc 297 lux / 28 fc
1m 396 lux / 37 fc 98 lux / 9 fc 177 lux / 16 fc 331 lux / 31 fc 74 lux / 7 fc
6,500K 0.5m 1,559 lux / 145 fc 390 lux / 36 fc 697 lux / 65 fc 1,304 lux / 121 fc 295 lux / 27 fc
1m 390 lux / 36 fc 98 lux / 9 fc 174 lux / 16 fc 326 lux / 30 fc 74 lux / 7 fc
7,500K 0.5m 1,558 lux / 145 fc 385 lux / 36 fc 693 lux / 64 fc 1,296 lux / 120 fc 291 lux / 27 fc
1m 390 lux / 36 fc 96 lux / 9 fc 173 lux / 16 fc 324 lux / 30 fc 73 lux / 7 fc
10,000K 0.5m 1,492 lux / 139 fc 381 lux / 35 fc 670 lux / 62 fc 1,243 lux / 115 fc 283 lux / 26 fc
1m 373 lux / 35 fc 95 lux / 9 fc 168 lux / 16 fc 311 lux / 29 fc 71 lux / 7 fc
Red 0.5m 442 lux / 41 fc 175 lux / 16 fc 295 lux / 27 fc 366 lux / 34 fc 146 lux / 14 fc
1m 110 lux / 10 fc 44 lux / 4 fc 74 lux / 7 fc 92 lux / 9 fc 37 lux / 3 fc
Green 0.5m 849 lux / 79 fc 329 lux / 31 fc 570 lux / 53 fc 716 lux / 67 fc 279 lux / 26 fc
1m 212 lux / 20 fc 82 lux / 8 fc 143 lux / 13 fc 179 lux / 17 fc 70 lux / 7 fc
Blue 0.5m 143 lux / 13 fc 63 lux / 6 fc 101 lux / 9 fc 121 lux / 11 fc 56 lux / 5 fc
1m 36 lux / 3 fc 16 lux / 1 fc 25 lux / 2 fc 30 lux / 3 fc 14 lux / 1 fc
