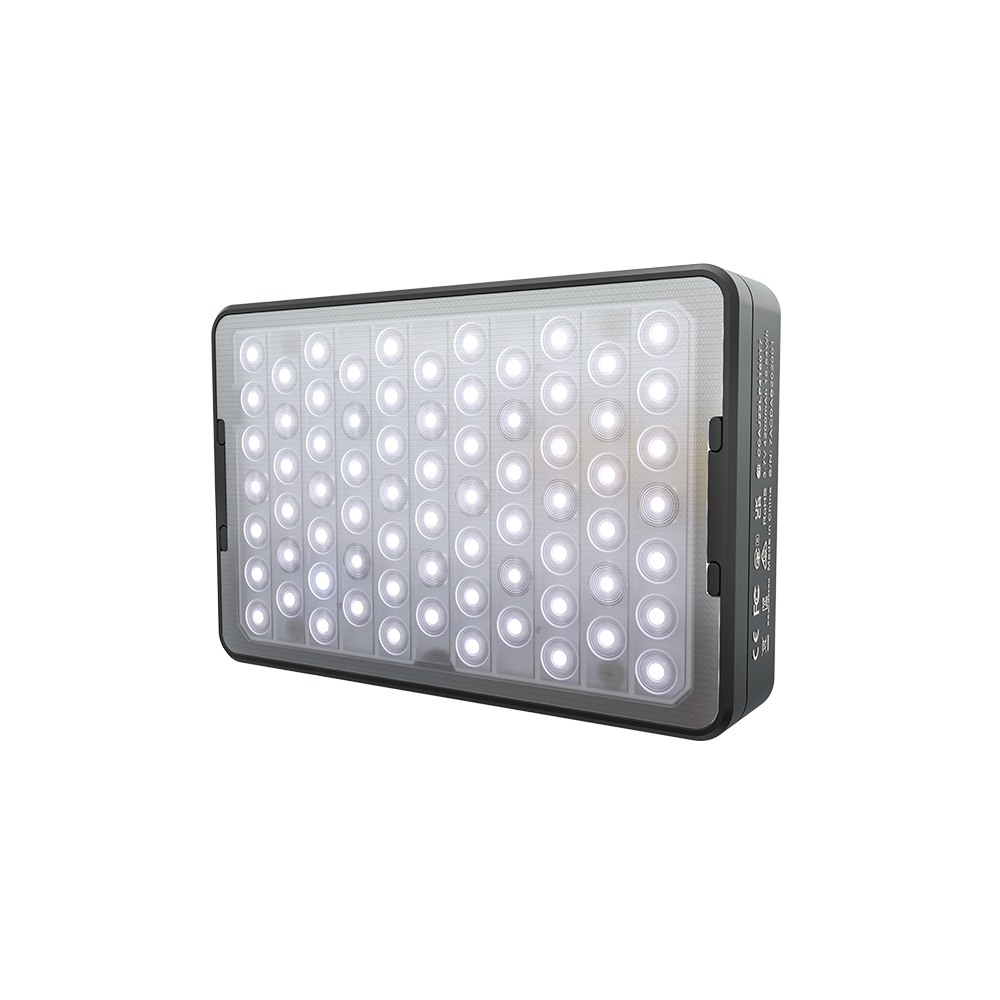

RGBWW Lensed Mini Professional LED
TECHNICAL SPECFICIATIONS
CCT | 2,000K - 10,000K |
CRI | 96 |
TLCI | 96 |
CQS | 95 |
SSI (D56) | 72 |
SSI (Tungsten) | 82 |
TM-30 RF (Average) | 94 |
TM-30 RG (Average) | 103 |
Max Power Output | 5W |
Max Power Consumption | 7W |
Lumens | 563 lm |
Max Operating Current | 0.84A |
Operating Voltage | 3.0-4.2V |
Charging Input | USB Type-C (5V/2A), Contact Charger |
Lithium-Polymer Battery | 4,200mAh / 3.7-4.2V, 15.5Wh |
Battery Life | Approx. 120 Mins @ Max Output |
Charge Time | Approx. 90 Mins (5V/2A) |
IP Rating | IP65 |
Operating Temeprature | -20ºC~45ºC / -68ºF~113ºF |
Dimming | 0-100% |
Control Methods | On-board,Sidus Link App, DMX/RDM, LumenRadio CRMX |
Wireless Range (Bluetooth) | ≤80m / ≤262ft |
Wireless Range (LumenRadio) | ≤100m / ≤328ft |
Screen Type | TFT |
Firmware Upgradeable | Sidus Link |
Cooling Method | Passive Cooling |
Dimensions | 10.8 x 7.0 x 2.5cm / 4.25 x 2.76 x 0.98in |
Weight | 247g / 0.54 lbs |
WHAT'S IN THE BOX
1x MC Pro |
1x MC Pro Flat Diffuser |
1x MC Pro Dome Diffuser |
1x MC Pro 30º Light Control Grid |
1x Cold Shoe Ball Head |
1x 1/4-20in Screw to Magnetic Plate Adapter |
1x USB Type-C Charging Cable |
4x Adhesive Magnetic Plate |
1x Carrying Case |
PHOTOMETRICS
CCT | Distance | Bare Bulb | Dome Diffuser | Flat Diffuser | 30º Grid | Bubble Diffuser* |
2,000K | 0.5m | 1,027 lux / 95 fc | 253 lux / 24 fc | 463 lux / 43 fc | 838 lux / 78 fc | 194 lux / 18 fc |
1m | 257 lux / 24 fc | 63 lux / 6 fc | 116 lux / 11 fc | 210 lux / 20 fc | 49 lux / 5 fc | |
2,700K | 0.5m | 1,244 lux / 116 fc | 297 lux / 28 fc | 543 lux / 50 fc | 1,014 lux / 94 fc | 226 lux / 21 fc |
1m | 311 lux / 29 fc | 74 lux / 7 fc | 136 lux / 13 fc | 254 lux / 24 fc | 57 lux / 5 fc | |
3,200K | 0.5m | 1,459 lux / 136 fc | 344 lux / 32 fc | 628 lux / 58 fc | 1,183 lux / 110 fc | 262 lux / 24 fc |
1m | 365 lux / 34 fc | 86 lux / 8 fc | 157 lux / 15 fc | 296 lux / 27 fc | 66 lux / 6 fc | |
4,300K | 0.5m | 1,597 lux / 148 fc | 384 lux / 36 fc | 696 lux / 65 fc | 1,314 lux / 122 fc | 291 lux / 27 fc |
1m | 399 lux / 37 fc | 96 lux / 9 fc | 174 lu / 16 fc | 328 lux / 30 fc | 73 lux / 7 fc | |
5,600K | 0.5m | 1,585 lux / 147 fc | 392 lux / 36 fc | 706 lux / 66 fc | 1,322 lux / 123 fc | 297 lux / 28 fc |
1m | 396 lux / 37 fc | 98 lux / 9 fc | 177 lux / 16 fc | 331 lux / 31 fc | 74 lux / 7 fc | |
6,500K | 0.5m | 1,559 lux / 145 fc | 390 lux / 36 fc | 697 lux / 65 fc | 1,304 lux / 121 fc | 295 lux / 27 fc |
1m | 390 lux / 36 fc | 98 lux / 9 fc | 174 lux / 16 fc | 326 lux / 30 fc | 74 lux / 7 fc | |
7,500K | 0.5m | 1,558 lux / 145 fc | 385 lux / 36 fc | 693 lux / 64 fc | 1,296 lux / 120 fc | 291 lux / 27 fc |
1m | 390 lux / 36 fc | 96 lux / 9 fc | 173 lux / 16 fc | 324 lux / 30 fc | 73 lux / 7 fc | |
10,000K | 0.5m | 1,492 lux / 139 fc | 381 lux / 35 fc | 670 lux / 62 fc | 1,243 lux / 115 fc | 283 lux / 26 fc |
1m | 373 lux / 35 fc | 95 lux / 9 fc | 168 lux / 16 fc | 311 lux / 29 fc | 71 lux / 7 fc | |
Red | 0.5m | 442 lux / 41 fc | 175 lux / 16 fc | 295 lux / 27 fc | 366 lux / 34 fc | 146 lux / 14 fc |
1m | 110 lux / 10 fc | 44 lux / 4 fc | 74 lux / 7 fc | 92 lux / 9 fc | 37 lux / 3 fc | |
Green | 0.5m | 849 lux / 79 fc | 329 lux / 31 fc | 570 lux / 53 fc | 716 lux / 67 fc | 279 lux / 26 fc |
1m | 212 lux / 20 fc | 82 lux / 8 fc | 143 lux / 13 fc | 179 lux / 17 fc | 70 lux / 7 fc | |
Blue | 0.5m | 143 lux / 13 fc | 63 lux / 6 fc | 101 lux / 9 fc | 121 lux / 11 fc | 56 lux / 5 fc |
1m | 36 lux / 3 fc | 16 lux / 1 fc | 25 lux / 2 fc | 30 lux / 3 fc | 14 lux / 1 fc |
