Aputure

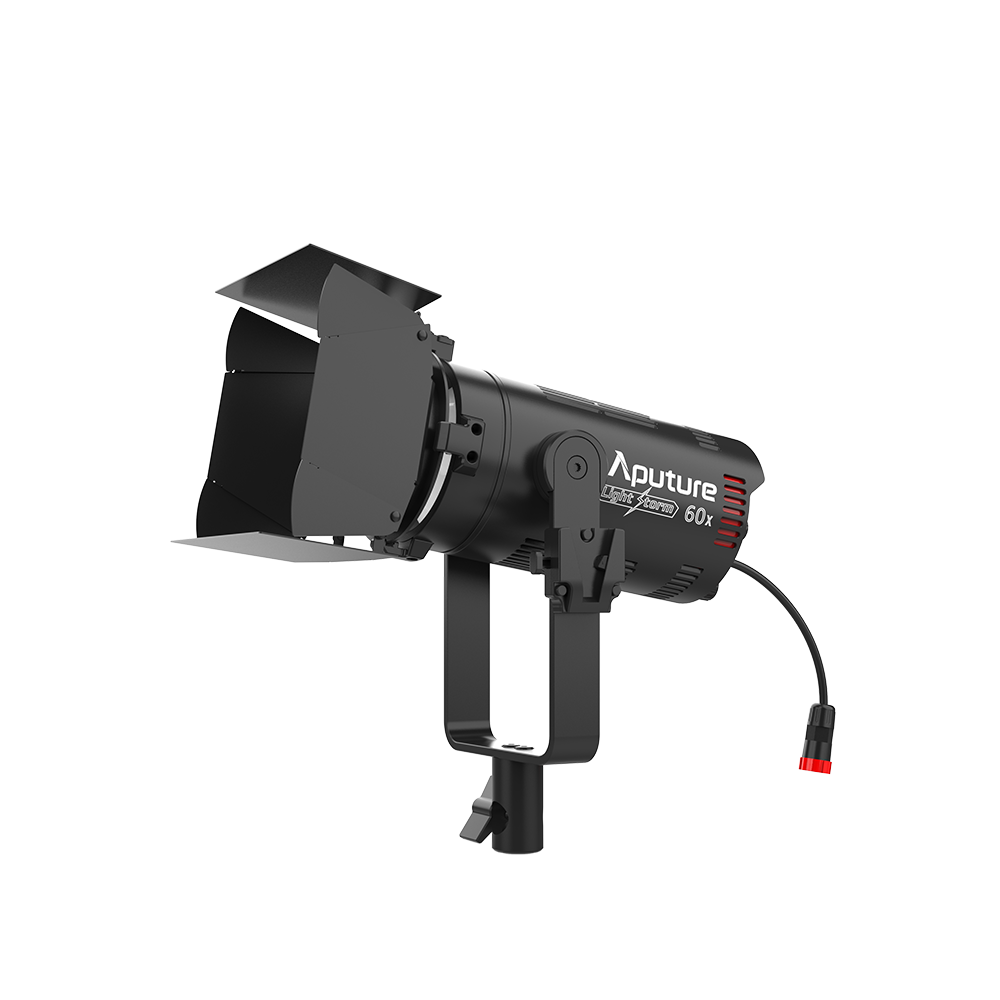

LS 60X

LS 60X

SKU:

Regular price $673.20 AUD
Regular price Sale price $673.20 AUD
Sale Sold out

60W Bi-Color Focusing LED

SPECIFICATIONS

CCT 2700K~6500K
CRI ≥96
TLCI ≥98
CQS 95 (ave.)
SSI (D56) 74
SSI (Tungsten) 86
Beam Angle 15°~45°
Output Wattage 60W
Max Power Draw 90W
Operating Current <6.5A (Max)
Operating Voltage (Power Supply) 19V
Operating Voltage (Battery) Sony NP-F 6~8.4V (Single battery) 12~16.8V (Dual battery)
Operating Voltage (Battery) D-Tap 12 ~ 16.8V
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Control Methods On-board, Sidus Link (Sidus Mesh®)
Wireless Operating Range (Bluetooth) ≤ 80m / 262.5ft
Screen Type OLED
Weatherproofing Yes
Cooling Method Active Cooling
Cable Type: Head Cable 4-pin DC Twist Lock Cable
Cable Type: Power Cable Locking IEC Power Cable (4m)
Accessory Mount LS 60 Mini Mount
Accessory Mount Diameter 120mm / 4.72in
Mounting 16mm | 5/8in (Baby Pin)

DIMENSIONS

Dimensions: Lamp Head without Yoke 209*116mm / 8.23*4.57in
Dimensions: Lamp Head with Yoke 280*156*127mm / 11.02*6.14*5in
Dimensions: Barn Doors Closed 134*108*33mm / 5.28*4.25*1in
Dimensions: Power Supply 135*56*34mm / 5.31*2.2*1in
Dimensions: NP-F Battery Plate 103*87*25mm / 4.06*3.43*1in
Dimensions: Case 420*200*200mm / 16.54*7.87*8in

WEIGHT

Weight: Lamp Head 1.8kg / 3.968lbs
Weight: Barn Doors 222g / 0.489lbs
Weight: Power Supply 370g / 0.816lbs
Weight: NP-F Battery Plate 134g / 0.295lbs
Weight: Total w/ Case 4.475kg / 9.866lbs

PHOTOMETRICS

CCT Distance 1m 3m 5m
2700K Spot (15°) 25,110 Lux 3,125 Lux 1,116 Lux
2700K Spot (15°) 2,332 Fc 290 Fc 104 Fc
2700K Flood (45°) 4,464 Lux 525 Lux 201 Lux
2700K Flood (45°) 415 Fc 49 Fc 19 Fc
3200K Spot (15°) 30,132 Lux 3,794 Lux 1,339 Lux
3200K Spot (15°) 2,799 Fc 352 Fc 124 Fc
3200K Flood (45°) 5,357 Lux 647 Lux 234 Lux
3200K Flood (45°) 498 Fc 60 Fc 21 Fc
4300K Spot (15°) 31,248 Lux 3,683 Lux 1,395 Lux
4300K Spot (15°) 2,903 Fc 342 Fc 129 Fc
4300K Flood (45°) 5,245 Lux 625 Lux 234 Lux
4300K Flood (45°) 448 Fc 58 Fc 21 Fc
5600K Spot (15°) 33,480 Lux 4,241 Lux 1,451 Lux
5600K Spot (15°) 3,110 Fc 394 Fc 134 Fc
5600K Flood (45°) 5,803 Lux 703 Lux 268 Lux
5600K Flood (45°) 539 Fc 66 Fc 25 Fc
6500K Spot (15°) 32,364 Lux 4,018 Lux 1,395 Lux
6500K Spot (15°) 3,007 Fc 373 Fc 129 Fc
6500K Flood (45°) 5,580 Lux 670 Lux 246 Lux
6500K Flood (45°) 519 Fc 61 Fc 22 Fc
