Aputure

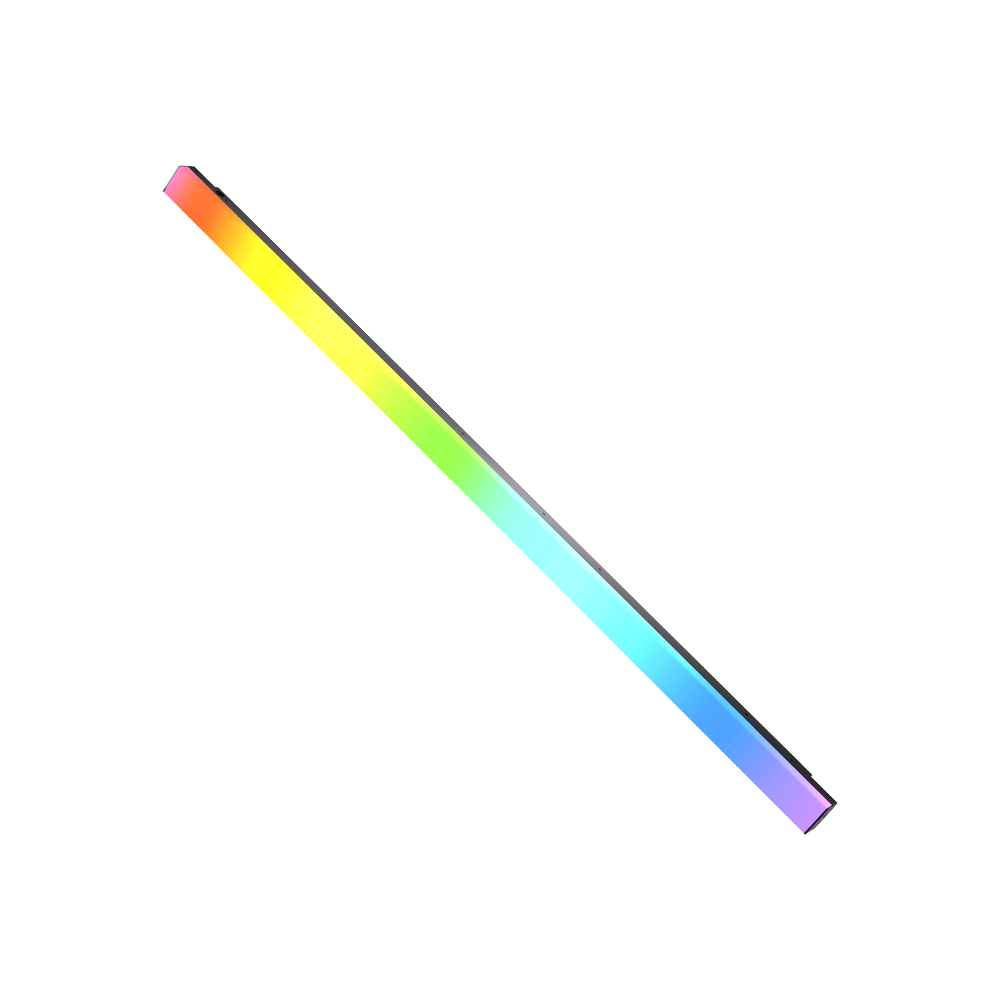

INFINIBAR PB12
INFINIBAR PB12
SKU:
Regular price
$836.00 AUD
Regular price
Sale price
$836.00 AUD
Unit price
/
per
Couldn't load pickup availability
4′ RGBWW Led Pixel Bar
PHOTOMETRICS
| CCT | 0.5m | 1.0m |
| 2,000K | 975 lux / 91 fc | 350 lux / 33 fc |
| 2,700K | 1,350 lux / 125 fc | 532 lux / 49 fc |
| 3,200K | 1,410 lux / 131 fc | 542 lux / 50 fc |
| 4,300K | 1,500K lux / 139 fc | 564 lux / 52 fc |
| 5,600K | 1,600 lux / 149 fc | 593 lux / 55 fc |
| 6,500K | 1,650 lux / 153 fc | 607 lux / 56 fc |
| 7,500K | 1,650 lux / 153 fc | 617 lux / 57 fc |
| 10,000K | 1,510 lux / 140 fc | 563 lux / 52 fc |
| Red | 227 lux / 21 fc | 227 lux / 21 fc |
| Green | 793 lux / 74 fc | 297 lux / 28 fc |
| Blue | 131 lux / 12 fc | 49 lux / 5 fc |
TECHNICAL SPECIFICATIONS
| (In Single Pixel Mode) | |
| CCT | 2,000K - 10,000K |
| CRI | 96+ |
| TLCI | 98+ |
| CQS | 96 |
| SSI (D56) | 74 |
| SSI (Tungsten) | 85 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 103 |
| Color Chipset | RGBWW |
| Single Pixel Mode Light Engine | RGBWW |
| Multi Pixel Mode Light Engine | RGB |
| Beam Angle (Half-Peak) | 120º |
| Lumens | 2,077lm |
| Max Power Output | 27W |
| Max Power Consumption (Fixture) | 36.5W |
| Max Power Consumption (Power Supply) | 40W |
| Operating Voltage & Current (Fixture) | 24V, 1.8A |
| Operating Voltage & Current (Power Supply) | 100V-240V 50/60Hz, 1.5A |
| Battery Capacity | 7.4V, 8000mAh, 59.2Wh |
| Battery Life | Approx. 80 Mins @ Max Output |
| Charge Time | Approx. 120 Mins (24V/2.67A) |
| Pixel Mapping | 96 Pixels |
| Operating Temperature | -10ºC ~ 45ºC / 14ºF ~ 113ºF |
| Control Methods | Sidus Link App, DMX/RDM, LumenRadio CRMX |
| Wireless Operating Range (Bluetooth) | ≤80m / ≤262.5ft |
| Wireless Operating Range (LumenRadio) | ≤100m / ≤328.1ft |
| IP Rating | IP 20 |
| Screen Type | OLED |
| Firmware Upgradeable | Sidus Link, USB-C |
| Cooling Method | Passive Cooling |
| Mounting | INFINIBAR Rail |
| Est. LED Lifetime (L70) | 50,000 Hours |
| Est. Color Shift Over Lifetime | 2% Over 6,000 Hours |
| Certifications | CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE |
DIMENSIONS
| Fixture | 120.4 x 4.5 x 4.3cm / 47.4 x 1.77 x 1.69in |
| Fixture + Spacer | 120.4 x 4.5 x 5.2cm / 47.4 x 1.77 x 2.05in |
| AC Power Supply | 12.0 x 5.3 x 3.2cm / 4.7 x 2.1 x 1.3in |
| INFINIBAR Clamp | 12.2 x 5.5 x 4.0cm / 4.8 x 2.2 x 1.6in |
| Case | 127.7 x 13 x 12.5cm / 50 x 5.1 x 4.9in |
WEIGHT
| Fixture | 1.96kg / 4.31lbs |
| Fixture + Spacer | 2.09kg / 4.61lbs |
| AC Power Supply | 0.49kg / 1.08lbs |
| INFINIBAR Clamp | 0.27kg / 1.08lbs |
| Total | 2.85kg / 6.28lbs |
WHAT'S IN THE BOX
| INFINIBAR PB12 |
| 48W DC Power Adapter (3m) |
| AC Locking Power Cable (1.5m) |
| INFINIBAR Clamp to Baby Pin Adapter |
| INFINIBAR Straight Connector |
| 5mm Hex Wrench |
| Carrying Case |
