Overview

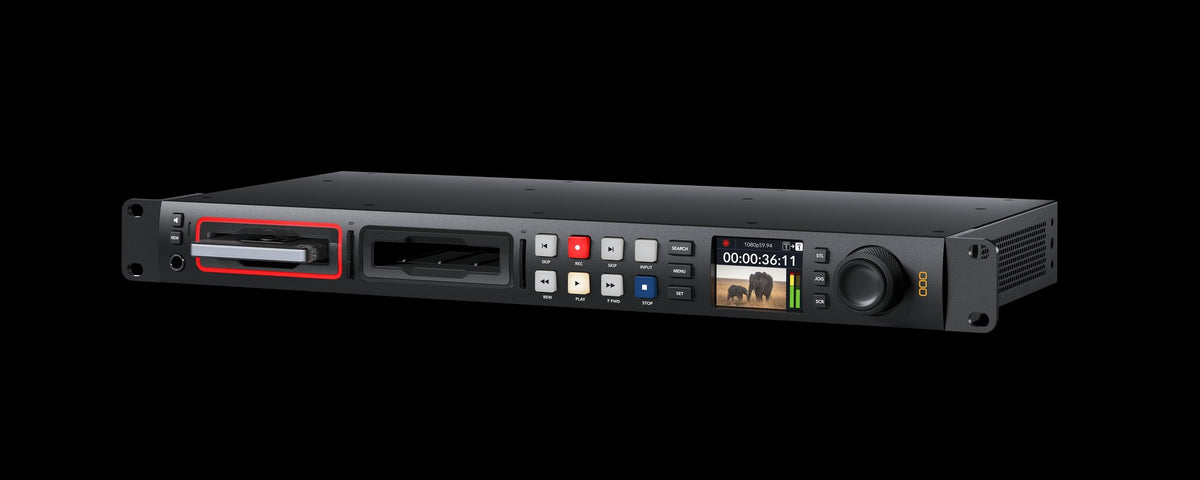

HyperDeck Studio HD Pro
The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there's space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.
Technical specifications
- SDI Video Inputs: 1
- SDI Video Outputs: 2
- SDI Monitor Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G, 6G.
- HDMI 2.0 Video Inputs: 1
- HDMI 2.0 Video Outputs: 1
- Built in Speaker: Mono
- Audio Output: 1 x 6.35 mm headphone jack.
- Screen: 2.2 inch LCD.
- Timecode Connections: 1 x XLR In, 1 x XLR Out.
- Reference Connections: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
- SDI Audio Inputs: 16 channels embedded audio.
- SDI Audio Outputs: 16 channels embedded audio.
- HDMI Audio Inputs: 8 channels embedded audio.
- HDMI Audio Outputs: 8 channels embedded audio.
- Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
- Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
- Ethernet: 1Gb/s
- Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K DCI Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1.
- SDI Metadata Support: HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
- Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- Audio Sampling: Television standard 24‑bit, 48 kHz sample rate.
- Video Sampling: 4:2:2 YUV
- Color Precision: 10‑bit
- Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
- HDR Support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
- Multi Rate Support: Auto detection of SD, HD and 6G‑SDI.
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Media: 2 x 2.5 inch disc slots 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
- Media Type: SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards.
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
- Built in Control Panel: 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
- External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
- Power Supply: 1 x Internal 100 - 240V AC 50/60Hz.
