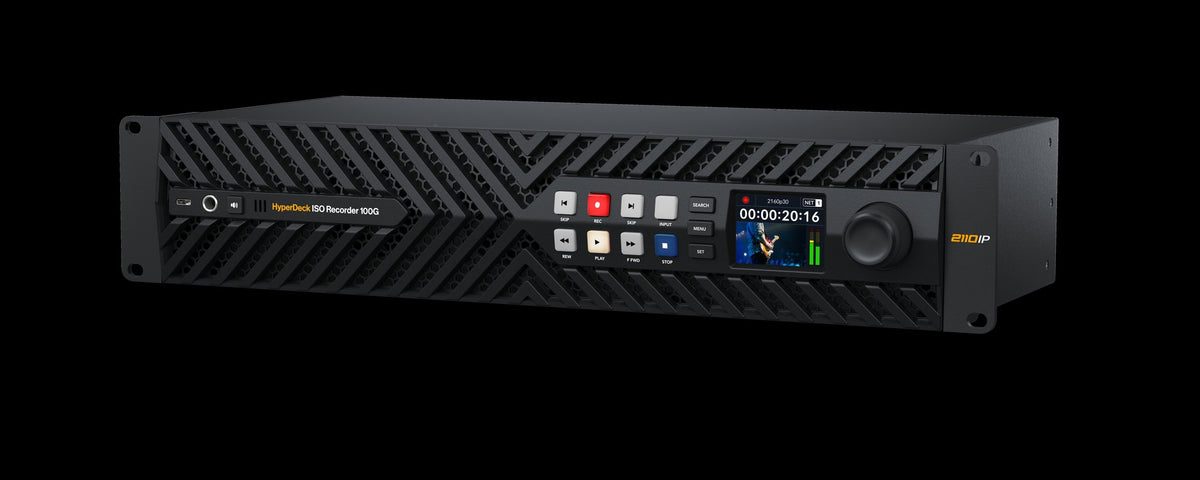

HyperDeck ISO Recorder 100G

HyperDeck ISO Recorder 100G

HyperDeck ISO Recorder 100G is designed for live production, recording 8 cameras at the same time. Record for later editing or get exciting live-action replay with DaVinci Resolve! Files are recorded in broadcast-quality ProRes format direct to network storage for very long record durations. It connects via SMPTE-2110 100G Ethernet, so all 8 video channels run over a single connection. Or add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also play back all 8 channels, great for testing!

Technical specifications

• 100G 2110 IP Networks: 2 x 100G QSFP28 connections.
• Senders and Receivers per 100G Pair: 8 x Ultra HD or 8 HD
• 100G Ethernet: 2 x 100G QSFP28 connections.
• 10G Control Network: 2 x 10G RJ45 Ethernet for NMOS control.
• Reference Network: 2 x RJ45 Ethernet for 2110 PTP clock.
• 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates.
• SDI Monitor Outputs: 2
• HDMI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• SMPTE ST 2110 IP Audio Inputs: Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Computer Interface: 1 x USB-C for HyperDeck Setup utility and software updates.
• Power: 2 x IEC C14 power inputs.
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1.
• Supported HDMI Formats: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• Audio Sampling: Television standard 24‑bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec. 709, Rec. 2020.
• HDR Support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
• SMPTE 2110-20 (Uncompressed Video): IGMP v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2)
• NMOS IS-04 Discovery and Registration: v1.3.2
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities
• Headphones: Front panel headphone outputs active monitor.
• Built in Speaker: Front panel mono speaker outputs active monitor.
• Audio Controls: Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.
• ProRes Encoder: Built-in hardware encoder supports up to 8 x Ultra HD simultaneous real-time ProRes encoding.

For further information, see Blackmagic Design.
