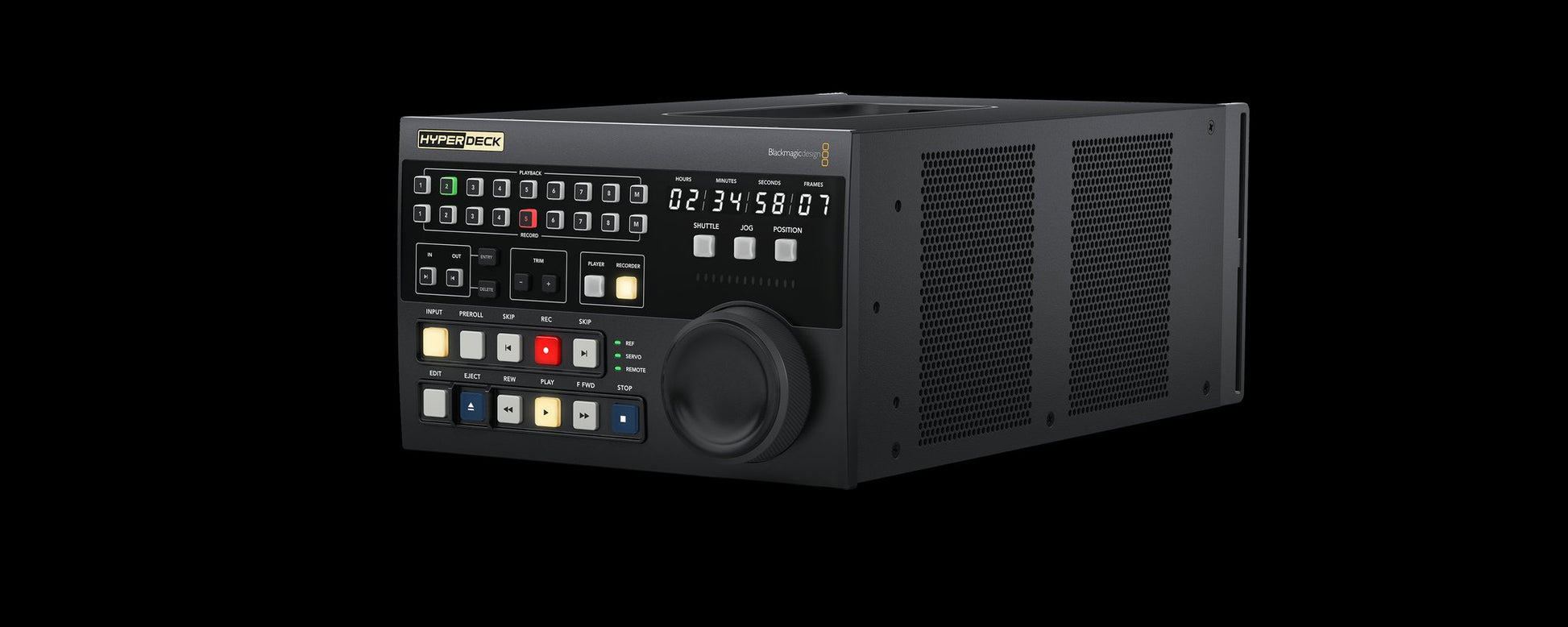

HyperDeck Extreme Control

HyperDeck Extreme Control

HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standard RS-422 control.

Technical specifications

• Deck Control Outputs: 8 x RS-422
• Reference Input: Tri-Sync or Black Burst.
• Reference Output: Follows reference input.
• Ethernet: 1Gb/s
• Computer Interface: 1 x USB-C for software updates.
• Control Protocols: Sony
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
• Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
• Power Usage: 20W max.
• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

For further information, see Blackmagic Design.
