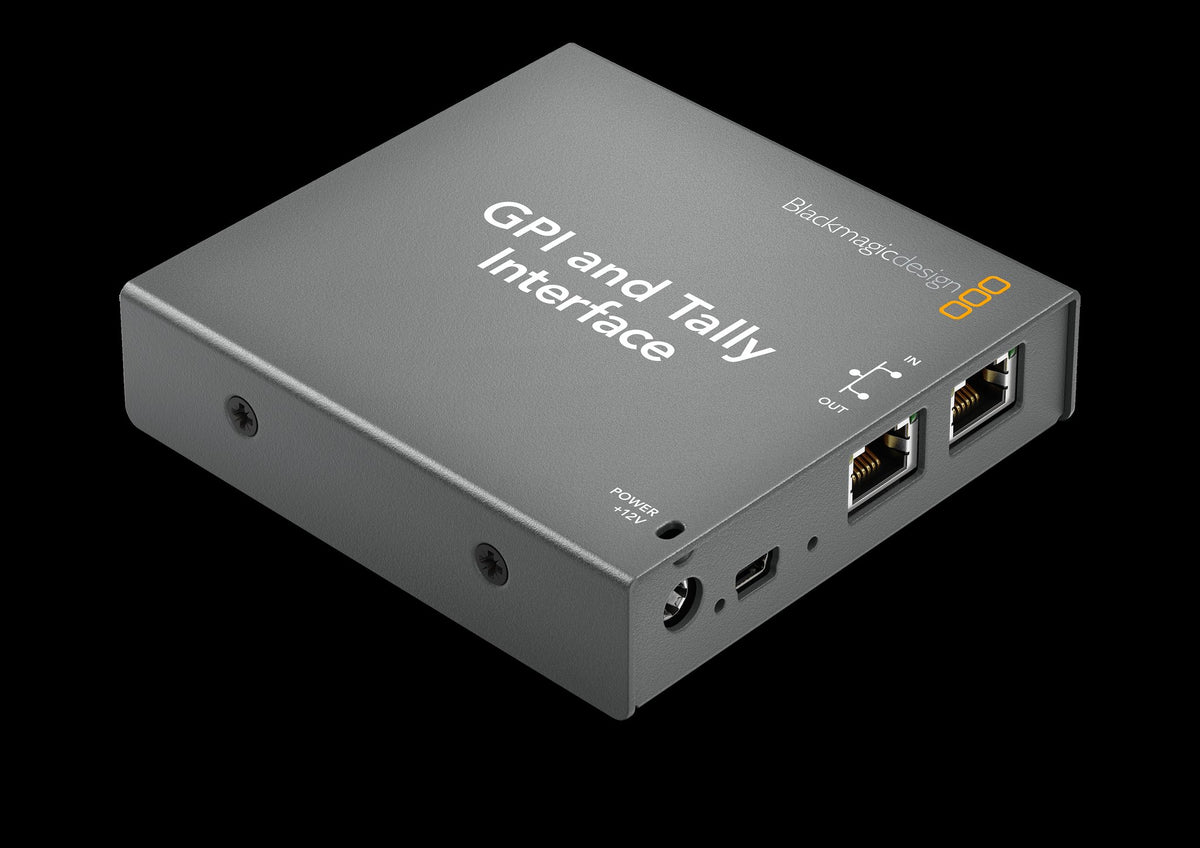

GPI and Tally Interface
Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.
Technical specifications
- Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
- Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates.
- Inputs: Optical isolators triggered by connection to ground. Max 5V at 14mA.
- Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
- Ethernet: 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
- Software Included: Configured via ATEM Switcher Utility.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system startup or via updater software.
- Power Supply: 12V power supply included with international socket adaptors for all countries.
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20 - 60 degrees celsius
- Relative Humidity: Up to 95%
