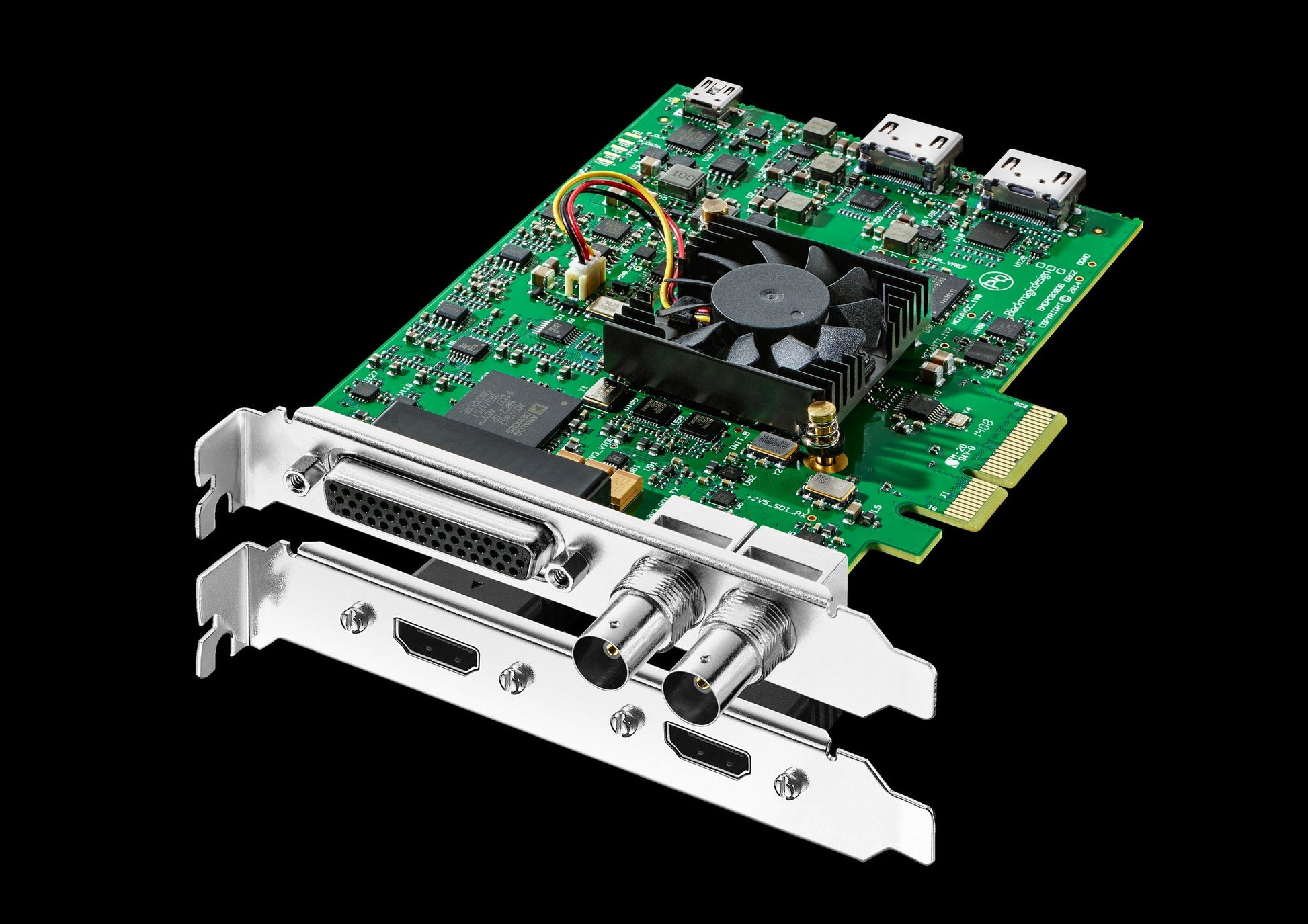

DeckLink Studio 4K
If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!
Technical specifications
- SDI Video Inputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
- SDI Video Outputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
- Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
- Analog Video Outputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
- Analog Audio Inputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors.
- Analog Audio Outputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
- AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter.
- AES/EBU Audio Outputs: 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
- SDI Audio Inputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
- SDI Audio Outputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
- HDMI Video Inputs: 1 x HDMI type A connector.
- HDMI Video Outputs: 1 x HDMI type A connector.
- HDMI Audio Inputs: 8 Channels embedded in SD, HD, 4K.
- HDMI Audio Outputs: 8 Channels embedded in SD, HD, 4K
- Sync Input: Tri-Sync or Black Burst.
- Device Control: Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
- Computer Interface: PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
- Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- 2K Video Standards (SDI Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only
- SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- SDI Video Sampling: 4:2:2, 4:4:4* *4K is 4:2:2.
- SDI Color Precision: 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes.
- Color Space: REC 601, REC 709
- HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
- HDMI Color Precision: 10-bit RGB HD 10-bit YUV in HD and 4K
- HDMI Configuration: HDMI 1.4b. Automatically configures to connected display.
- Audio Sampling: Television standard sample rate of 48 kHz at 24 bit.
- Color Precision: 10-bit
- Color Space: REC 601, REC 709
- HDMI Resolution: Pixel for pixel up to 4K resolutions.
- Multiple Rate Support: HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD.
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- HD Down Conversion: Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
