Product information
Overview

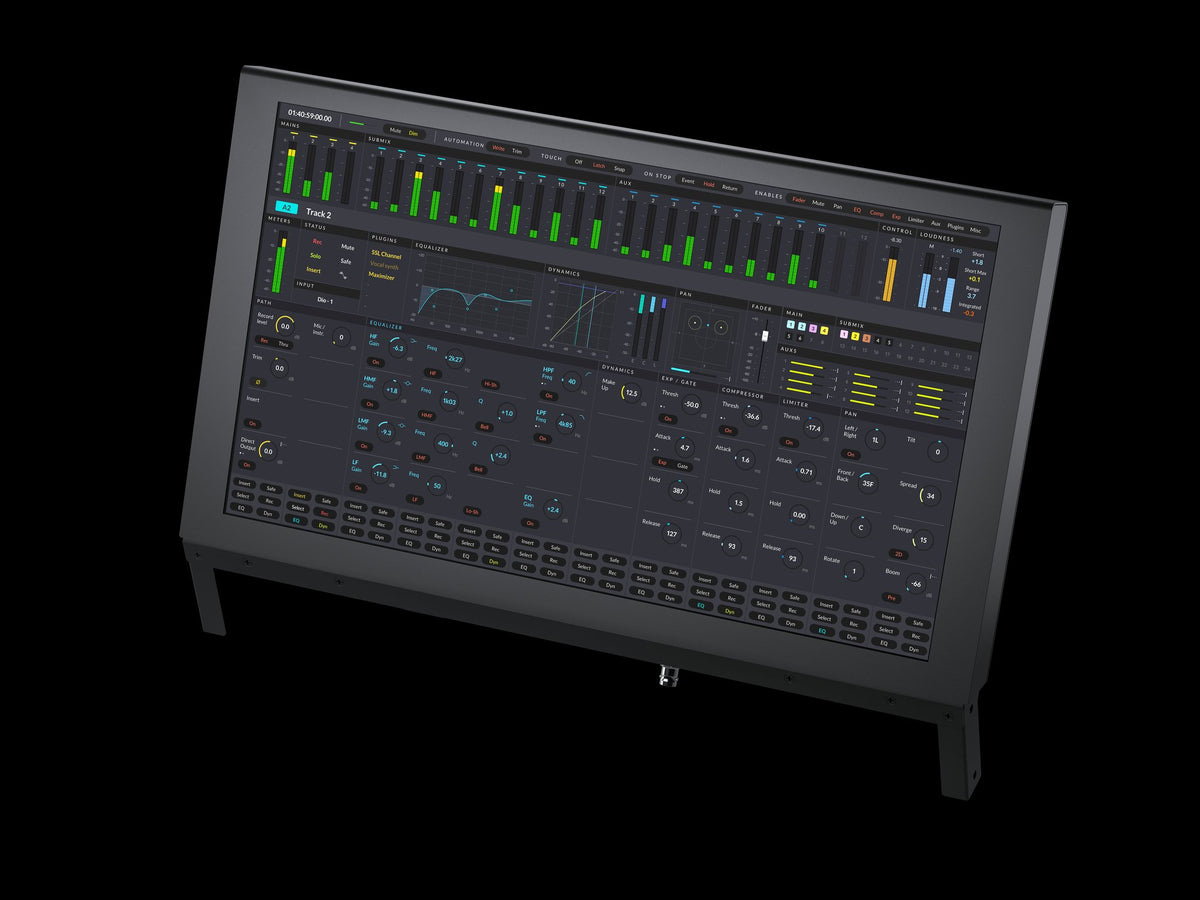

Fairlight Console LCD Monitor
Add a high resolution LCD monitor to every bay of your Fairlight console with Fairlight Console LCD Monitor! When installed above channel faders and controls you get instant graphic feedback for that channel, access to additional controls and more. Featuring an ethernet interface to display channel information, there is also an HDMI interface you can connect to your computer to see native plug‑in interfaces and an SDI BNC for video program or studio camera previews.
Technical specifications
- Ethernet: Ethernet supports 10/100/1000 BaseT.
- HDMI Video Input: HDMI Type A.
- SDI Inputs: 1 x 3G‑SDI.
- SDI Rates: 1.5G, 3G.
- HDMI Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- SDI Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
- SDI Video Sampling: 4:2:2
- SDI Color Precision: 10-bit
- SDI Color Space: YUV
- Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
- Power Usage: 20W max.
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60°C (-4° to 140°F)
- Relative Humidity: 0% to 90% non-condensing
For further information, see Blackmagic Design.
