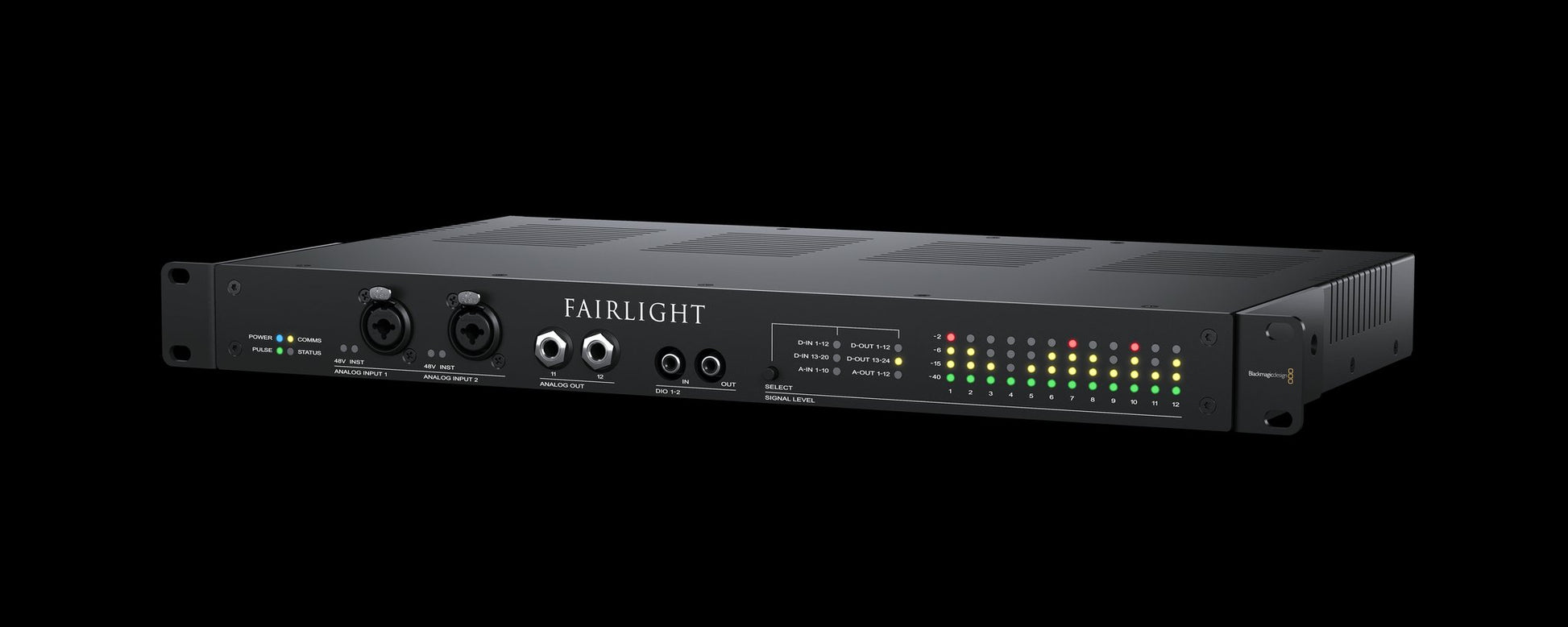

Fairlight Audio Interface

Fairlight Audio Interface

Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9‑pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.

Technical specifications

• Analog Audio Inputs: 2 x remote controlled XLR/TRS microphone inputs with 48v phantom power / instrument preamps.
• Analog Audio Outputs: 12 x +24dBu balanced analog outputs with mute protection.
• Digital Audio Inputs: 9 x fully transformer coupled AES stereo digital inputs.
• Digital Audio Outputs: 11 x AES stereo digital outputs.
• Sync Input: 1 x 75 ohm BNC Reference input. Tri‑Sync or Black Burst.
• Sync Output: 1 x 75 ohm BNC Reference loop out. Tri‑Sync or Black Burst.
• Device Control: 1 x RS-422 9-pin machine control input.
• Timecode: Timecode input and output with regeneration.
• MIDI: For future use
• GPIO: GPI and GPO connections for cough and ‘On‑Air’ control
• Sample Rate: 44.1, 48, 96, 192 kHz
• Max Input: Inputs 1-2 (mic): +2.5dBu
• Gain Range: Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB)
• Mic E.I.N (unweighted): Inputs 1-2: -127dBu @40dB (61.5dB)
• THD+N (line input): Inputs 1-2: <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted)
• Dynamic Range (line input): Inputs 1-2 : 108dB @ 0dB gain (unweighted)
• Input Frequency Response: +0.05/-0.05dB, 20Hz - 20kHz
• Input Impedance: Inputs 1-2 (XLR) : 2k ohm
• Max Output: Outputs 1-12: +24 dBu
• THD+N (Line Outputs): Outputs 1-12: <0.002%
• Dynamic Range (Line Output): Outputs 1-12 : 109 dB (unweighted)
• Output Frequency Response: +0.05/-0.5dB, 20Hz - 20kHz
• Output Impedance: Outputs 1-12 : 50 ohms
• Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
• Power Usage: 40W
• Power Management: Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on.
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

For further information, see Blackmagic Design.
