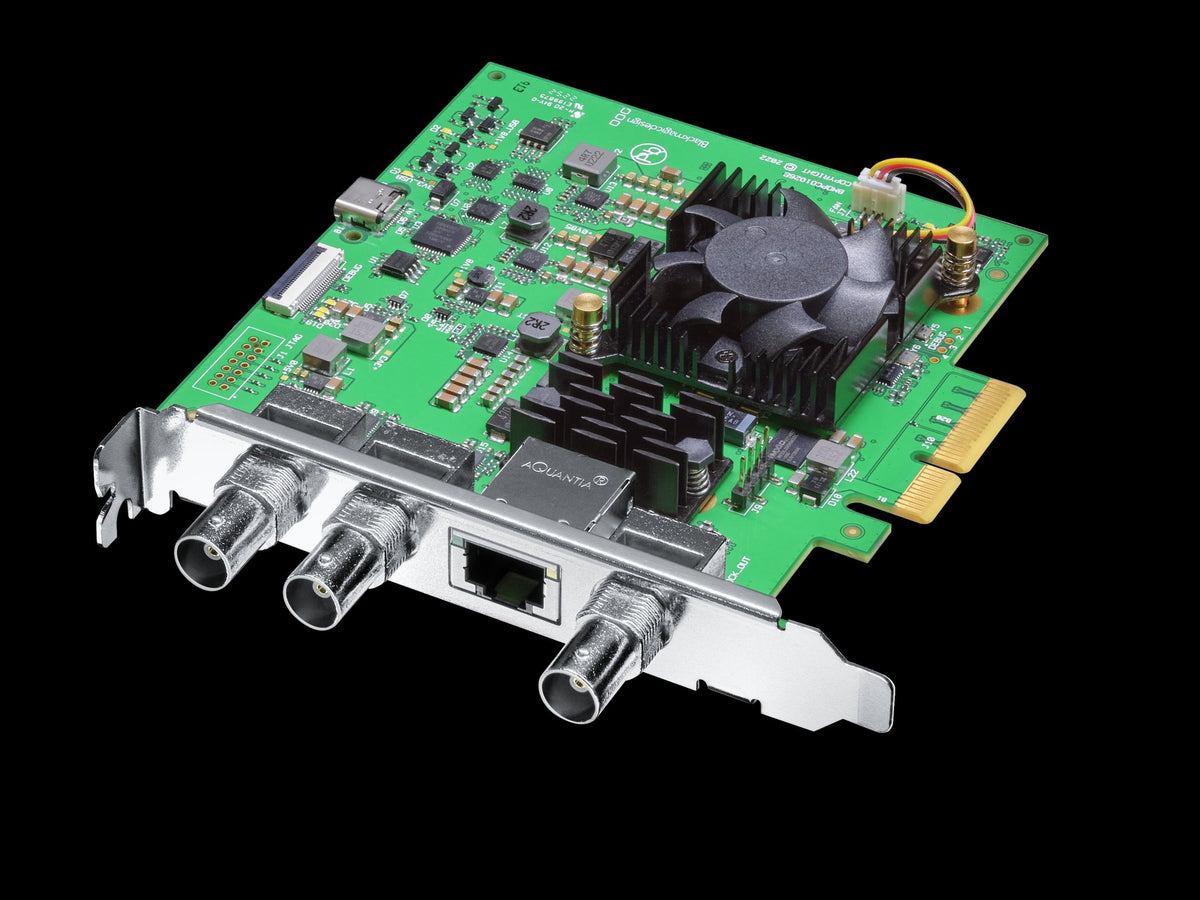

DeckLink IP/SDI HD
Connect to both 3G-SDI and 2110 IP systems with DeckLink IP/SDI HD. It has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 2 direction configurable 3G-SDI connections and reference out. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, and supports 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
Technical specifications
- SDI Ports: 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
- 10G Ethernet Port: 1 x 10G BASE-T
- Sync Output: Tri-Sync or Black Burst.
- Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
- Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
- SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30*
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU‑R BT.656 and ITU‑R BT.601.
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
- Color Space: REC 601, REC 709, REC 2020
- HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.
- SMPTE 2110-20 (Uncompressed Video): IGMP v2/v3
- SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
- SMPTE 2110-30 (PCM): Audio Conformance level: Level C
- SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
- Precision Time Protocol: IEEE 1588-2008 (PTP v2)
- NMOS IS-04 Discovery and Registration: v1.3.2
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
- Colorspace Conversion: Hardware based real time.
- Real Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
- Power Consumption: 10 Watts
- Operating Temperature: 5° to 40 ° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
