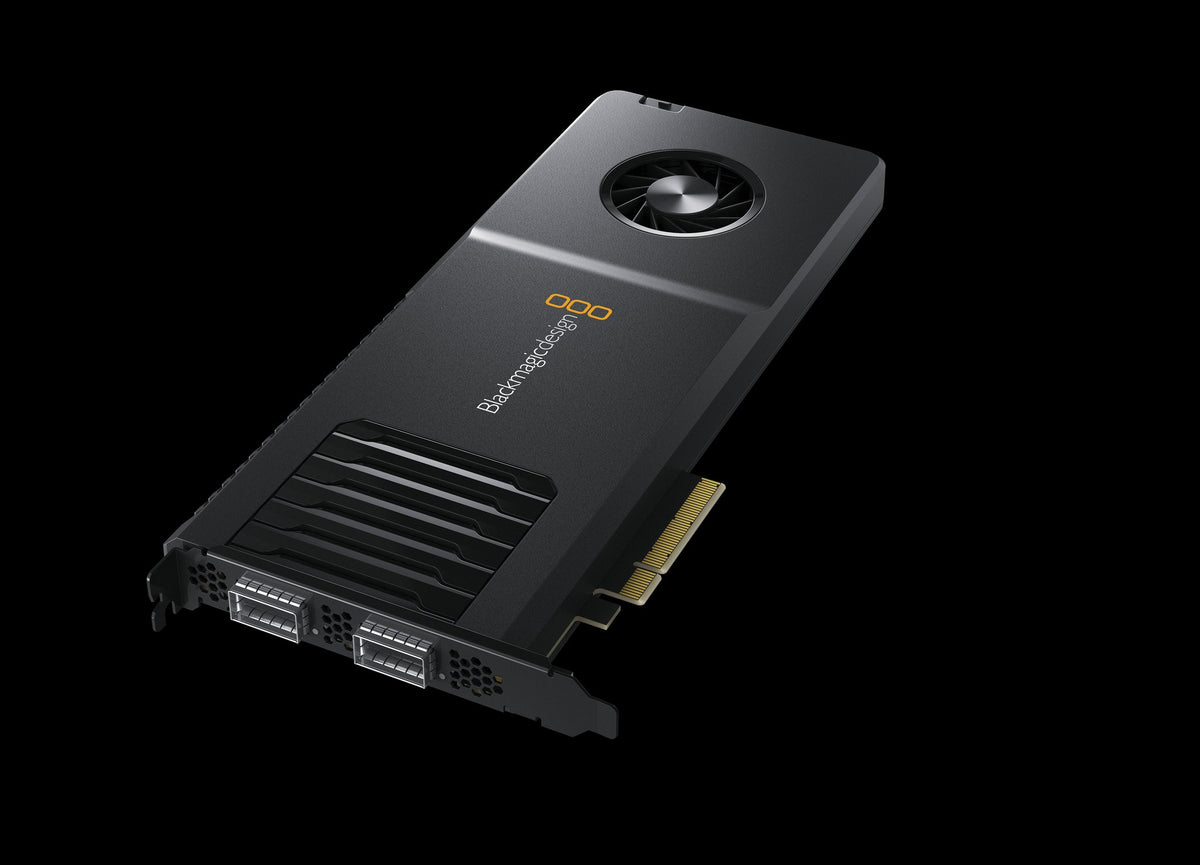

DeckLink IP 100G

DeckLink IP 100G

DeckLink IP 100G features up to 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi rate so they support all SD, HD and Ultra HD standards up to 2160p60.

Technical specifications

• 100G Ethernet Ports: 2 x 100Gb/s QSFP28 connectors.
• Computer Interface: PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots.
• Power: 6-pin 2x3 auxiliary power connector.
• Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• Audio Sampling: Television standard sample rate of 48 kHz at 24‑bit.
• Color Precision: 8 and 10-bit YUV 4:2:2: in all modes.
• Color Space: REC 601, REC 709, REC 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
• SMPTE 2110-20 (Uncompressed Video): IGMP v2/v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• SMPTE 2022-7 (Redundant streams): Receiver class A
• Precision Time Protocol: IEEE 1588-2008 (PTP v2)
• NMOS IS-04 Discovery and Registration: v1.3.2
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities
• Colorspace Conversion: Hardware based real time.
• Real Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Power Consumption: 50 Watts
• Operating Temperature:: 5° to 50° C (41° to 122° F)
• Storage Temperature:: -20° to 60° C (-4° to 140° F)
• Relative Humidity:: 0% to 90% non‑condensing

For further information, see Blackmagic Design.
