Description

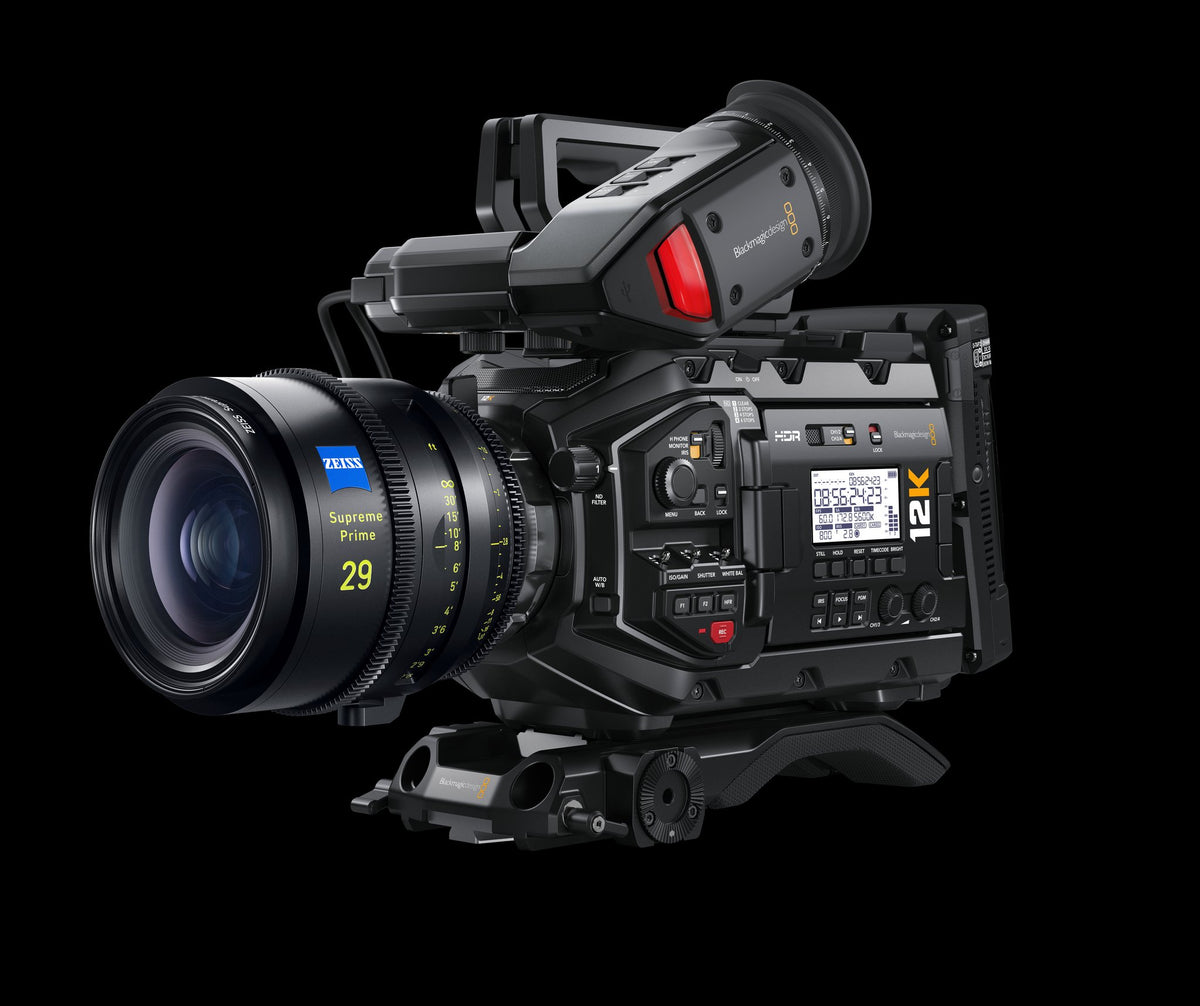

URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB‑C connection!
Camera Features
Effective Sensor Size
27.03mm x 14.25mm (Super35)
Lens Mount
PL mount included. Interchangeable with optional EF and F lens mounts.
Lens Control
12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
Dynamic Range
14 Stops
Shooting Resolutions
12,288 x 6480 (12K DCI)
11,520 x 6480 (12K 16:9)
12,288 x 5112 (12K 2.4:1)
7680 x 6408 (12K Anamorphic)
8192 x 4320 (8K DCI)
7680 x 4320 (8K 16:9)
8192 x 3408 (8K 2.4:1)
5120 x 4272 (8K Anamorphic)
6144 x 3240 (6K Super16)
4096 x 2160 (4K Super16)
4096 x 2160 (4K DCI)
3840 x 2160 (4K 16:9)
4096 x 1704 (4K 2.4:1)
2560 x 2136 (4K Anamorphic)
Frame Rates
Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High Speed Frame Rates
12K 17:9 full sensor up to 60 fps
8K DCI full sensor up to 110 fps
4K DCI full sensor up to 110 fps
8K 2.4:1 and 4K 2.4:1 up to 140 fps
6K Super 16 up to 120 fps
4K Super 16 up to 220 fps
Built in ND Filters
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs
1 x 12G-SDI
Total Video Outputs
1 x 12G-SDI, 1 x 3G-SDI Monitoring.
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Remote Control
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
1 x USB Type-C for software updates.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
Standards
SD Video Standards
None.
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24 bit
Media
Media
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Bitrate 18:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5.
Control
External Control
Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.
Talkback and Tally
Talkback
SDI Channels 15/16 and iPhone headset.
Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage Features
Storage Type
2 x CFast 2.0
2 x SD UHS-II cards
1 x high speed USB-C expansion port for external media.
Storage Rates
Storage rates based on 24 frames per second.
12K - 12,288 x 6480
Blackmagic RAW 5:1 - 578 MB/s
Blackmagic RAW 8:1 - 361 MB/s
Blackmagic RAW 12:1 - 241 MB/s
Blackmagic RAW 18:1 - 160 MB/s
Blackmagic RAW Q0 - 241 to 578 MB/s 1
Blackmagic RAW Q1 - 144 to 361 MB/s 2
Blackmagic RAW Q3 - 96 to 241 MB/s 3
Blackmagic RAW Q5 - 72 to 180 MB/s 4
8K - 8192 x 4320
Blackmagic RAW 5:1 - 258 MB/s
Blackmagic RAW 8:1 - 161 MB/s
Blackmagic RAW 12:1 - 107 MB/s
Blackmagic RAW 18:1 - 72 MB/s
Blackmagic RAW Q0 - 107 to 258 MB/s 1
Blackmagic RAW Q1 - 64 to 161 MB/s 2
Blackmagic RAW Q3 - 43 to 107 MB/s 3
Blackmagic RAW Q5 - 32 to 81 MB/s 4
6K - 6144 x 3240
Blackmagic RAW 5:1 - 145 MB/s
Blackmagic RAW 8:1 - 91 MB/s
Blackmagic RAW 12:1 - 61 MB/s
Blackmagic RAW 18:1 - 40 MB/s
Blackmagic RAW Q0 - 61 to 145 MB/s 1
Blackmagic RAW Q1 - 36 to 91 MB/s 2
Blackmagic RAW Q3 - 24 to 61 MB/s 3
Blackmagic RAW Q5 - 18 to 45 MB/s 4
4K - 4096 x 2160
Blackmagic RAW 5:1 - 65 MB/s
Blackmagic RAW 8:1 - 41 MB/s
Blackmagic RAW 12:1 - 27 MB/s
Blackmagic RAW 18:1 - 18 MB/s
Blackmagic RAW Q0 - 27 to 65 MB/s 1
Blackmagic RAW Q1 - 16 to 41 MB/s 2
Blackmagic RAW Q3 - 11 to 27 MB/s 3
Blackmagic RAW Q5 - 8 to 20 MB/s 4
Recording Formats
Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
1 Constant Quality setting Q0 storage rates quoted are indicative only, based on a 5:1 - 12:1 compression range.
2 Constant Quality setting Q1 storage rates quoted are indicative only, based on a 8:1 - 20:1 compression range.
3 Constant Quality setting Q3 storage rates quoted are indicative only, based on a 12:1 - 30:1 compression range.
4 Constant Quality setting Q5 storage rates quoted are indicative only, based on a 16:1 - 40:1 compression range.
Actual storage rates are entirely dependent on image subject matter.
Software
Software Included
URSA Mini Operating System
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10.
Power Requirements
Power Supply
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External Power Input
1 x 4 pin XLR port for external power or battery use.
1 x 12 pin Molex connector on rear battery plate.
Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories
Optional Accessories
URSA Mini Pro PL, EF and F Mounts
URSA Mini Pro Shim Kit
URSA Mini Shoulder Kit including top handle and extender arm
URSA Viewfinder
URSA Studio Viewfinder
URSA Mini Recorder
URSA VLock Battery Plate
URSA Gold Battery Plate
URSA Mini Mic Mount
URSA Mini Top Handle
URSA Handgrip
Blackmagic Camera Fiber Converter
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic URSA Mini Pro 12K Body
Turret dust cap
PL lens mount
Power supply
DaVinci Resolve Studio activation key
Warranty
12 Month Limited Manufacturer's Warranty.
