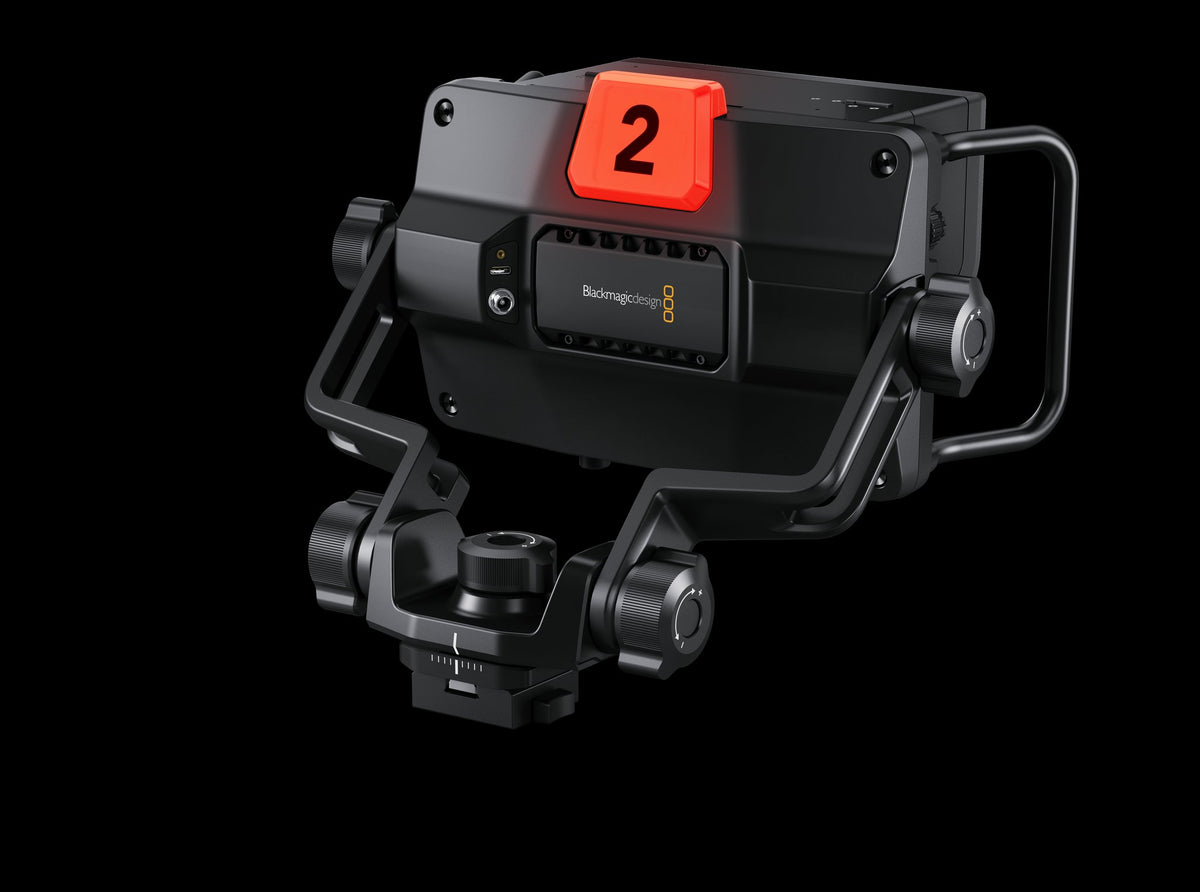

Blackmagic URSA Cine Studio Viewfinder

Blackmagic URSA Cine Studio Viewfinder

Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.

Technical specifications

• USB-C with Locking Connector: Video, power, metadata, camera control and software updates.
• Screen Dimensions: 7" 1920 x 1200 resolution.
• Screen Type: 7" high brightness TFT LCD
• Screen Brightness: 2000 nits
• Power: 5.5mm locking barrel socket supports +12V to +17V DC power.
• Display Size: 7 inch.
• Display Resolution: 1920px x 1200px.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 2000 nits.
• Frame Rates: Up to 60fps.
• Handles: Built in grab handles for positioning the monitor independently from the camera.
• Position Adjustment Options: Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.
• Sunshade: Detachable and foldable sunshade
• Mounting Options: Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.
• Tally: Large talent facing LED tally light with customizable perspex camera numbers.
• Metadata Support: Viewfinder supports all camera metadata and full Blackmagic OS camera control.
• Controls: Touch screen with heads up display and full camera control,
• On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.
• Function Button Toggle: Clean Feed
• Mounting: Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.
• Power Input: USB-C via Blackmagic camera Viewfinder connections.
• Power Usage: TBA
• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing
• Product Warranty: 1 Year Limited Manufacturer’s Warranty.

For further information, see Blackmagic Design.
