Blackmagic UpDownCross 100G

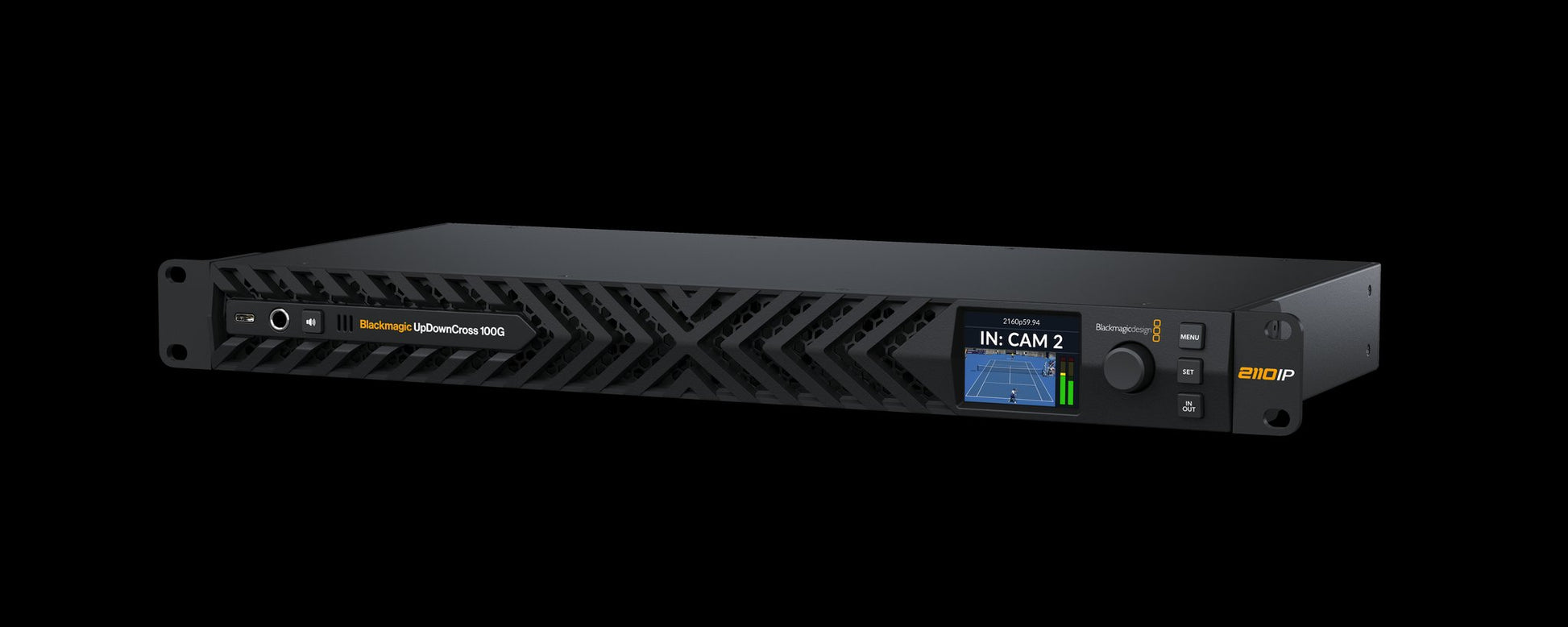

The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that's very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks!
Technical specifications
- 100G 2110 IP Networks: 2 x 100G QSFP28 connections.
- Senders and Receivers: 8 x Ultra HD or HD.
- 1G Control Network: 1 x 1G RJ45 for NMOS control, configuration and firmware updates.
- SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
- SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
- Analog Audio Outputs: 1 x 6.35 mm headphone jack.
- Computer Interface: 1 x USB-C for configuration and firmware updates.
- Power: 2 x IEC C14 power inputs.
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- Color Precision: 10-bit 4:2:2 YUV
- Color Space: Rec. 709, Rec. 2020
- SMPTE 2110-20 (Uncompressed Video): IGMP v3
- SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
- SMPTE 2110-30 (PCM): Audio Conformance level: Level C
- SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
- Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
- Precision Time Protocol: IEEE 1588-2008 (PTP v2)
- NMOS IS-04 Discovery and Registration: v1.3.2
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
- Headphones: Front panel headphone outputs active monitor.
- Built in Speaker: Front panel mono speaker outputs active monitor.
- Audio Controls: Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.
- Display: Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
- Built in Control Panel: 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
- External Control: RJ-45 Ethernet and USB-C.
- Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
- Power Inputs: 2 x IEC C14 sockets.
- Power Usage: TBC
- Operating Temperature: 0° C to 40° C (32° ‑ 104°F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
For further information, see Blackmagic Design.
