Overview

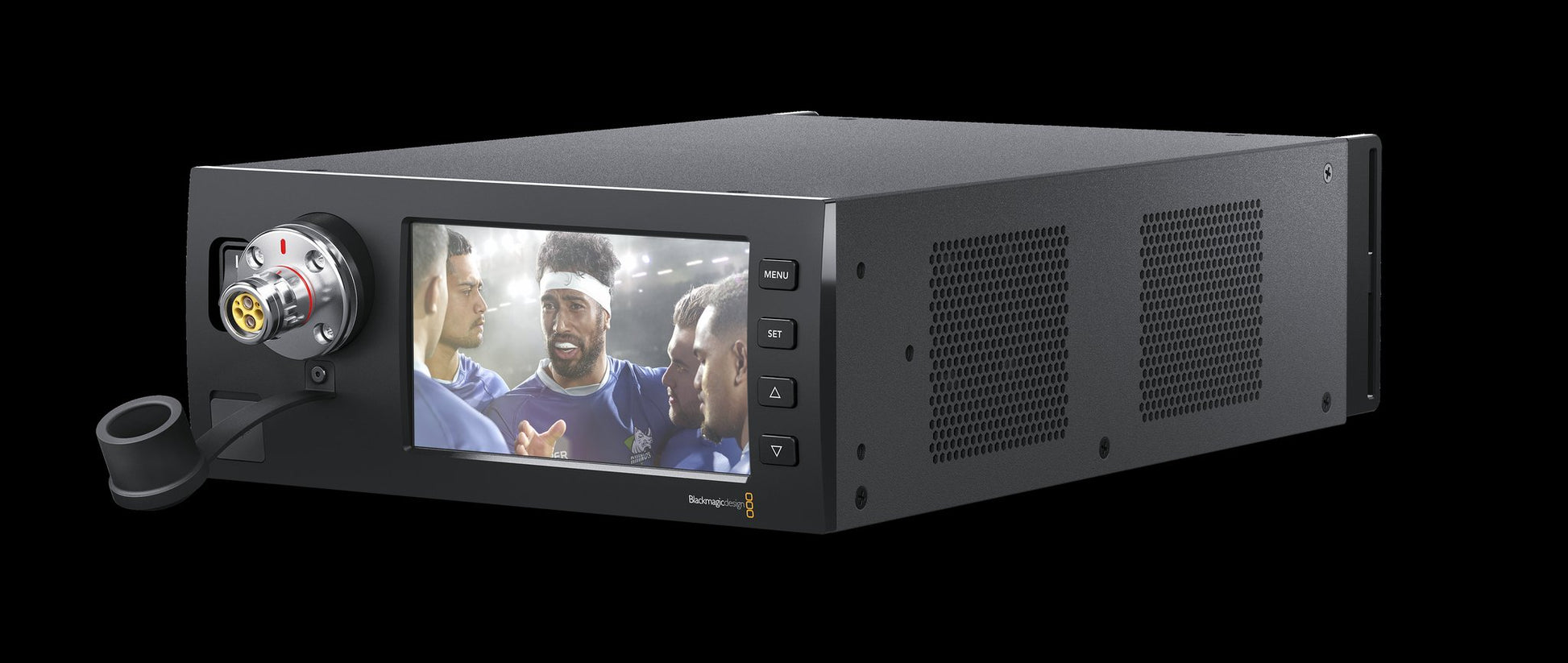

Blackmagic Studio Fiber Converter
Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
Technical specifications
- Optical Fiber Input: 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
- SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
- SDI Video Output: 2x 12G SDI for Ultra HD up to 60p.
- Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
- Balanced XLR Audio Outputs: 4x camera analogue audio outputs.
- Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active).
- Computer Interface: 1x USB-C.
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
- Audio Sampling: Television standard sample rate of 48Khz, 24 bit A/D conversion.
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 709, REC 2020.
- Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
- Software Included: Camera Utility for firmware update.
- Power Supply: 100 - 240V AC input.
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
For further information, see Blackmagic Design.
