Overview

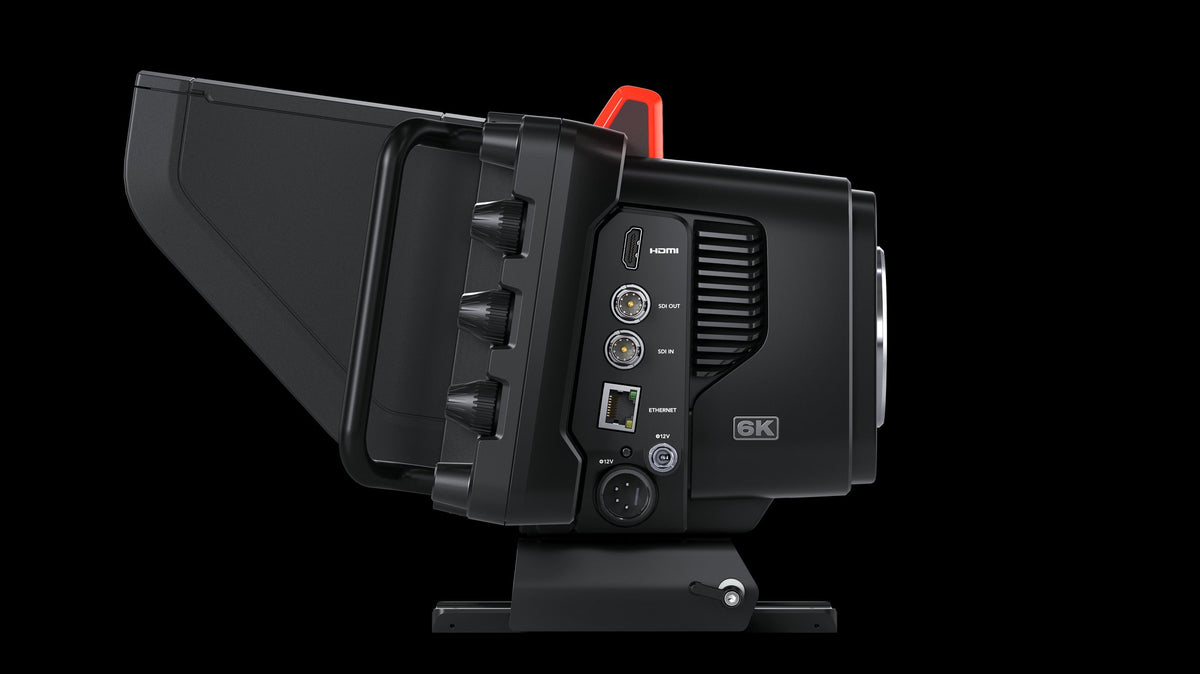

Blackmagic Studio Camera 6K Pro
Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built in streaming! You also get 12G‑SDI, HDMI and 10G Ethernet which allows all connections on a single cable for a SMPTE style workflow that's much lower cost.
Technical specifications
- Effective Sensor Size: 23.10mm x 12.99mm (Super 35)
- Lens Mount: Active EF mount.
- Lens Control: Iris, focus, zoom on supported lenses.
- Dynamic Range: 13 Stops.
- Dual Native ISO: 0dB and 18dB gain.
- Sensitivity at 0dB Gain: f 11 with 2160p59.94.
- Signal to Noise Ratio: 64.62dB for 2160p
- Recording Resolutions: 6144 x 3456 (6K) up to 50 fps
- Video Output Standards: 2160p, 1080p, 1080i
- Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
- Built in ND Filters: Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.
- Focus: Auto focus available using compatible lenses.
- Screen Dimensions: 7 inch 1920 x 1200
- Screen Type: LCD capacitive touchscreen.
- Screen Brightness: 2000 nits
- Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
- Mounting Options: 2 x 1/4 inch tripod mount.
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 1.5G, 3G, 6G, 12G.
- HDMI 2.0 Video Outputs: 1
- Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
- Analog Audio Output: 1 x 5-pin XLR for talkback headset.
- SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI.
- Reference Inputs: Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
- Remote Control: Remote camera control over SDI, HDMI or Ethernet.
- Ethernet: 10Gb/s
- Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
- Microphone: Integrated stereo microphone.
- Built in Speaker: 1 x mono speaker.
- Direct Streaming: Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
- Streaming Platforms: ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
- SD Video Standards: None
- HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
- Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
- Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
For further information, see Blackmagic Design.
