Product information
Overview

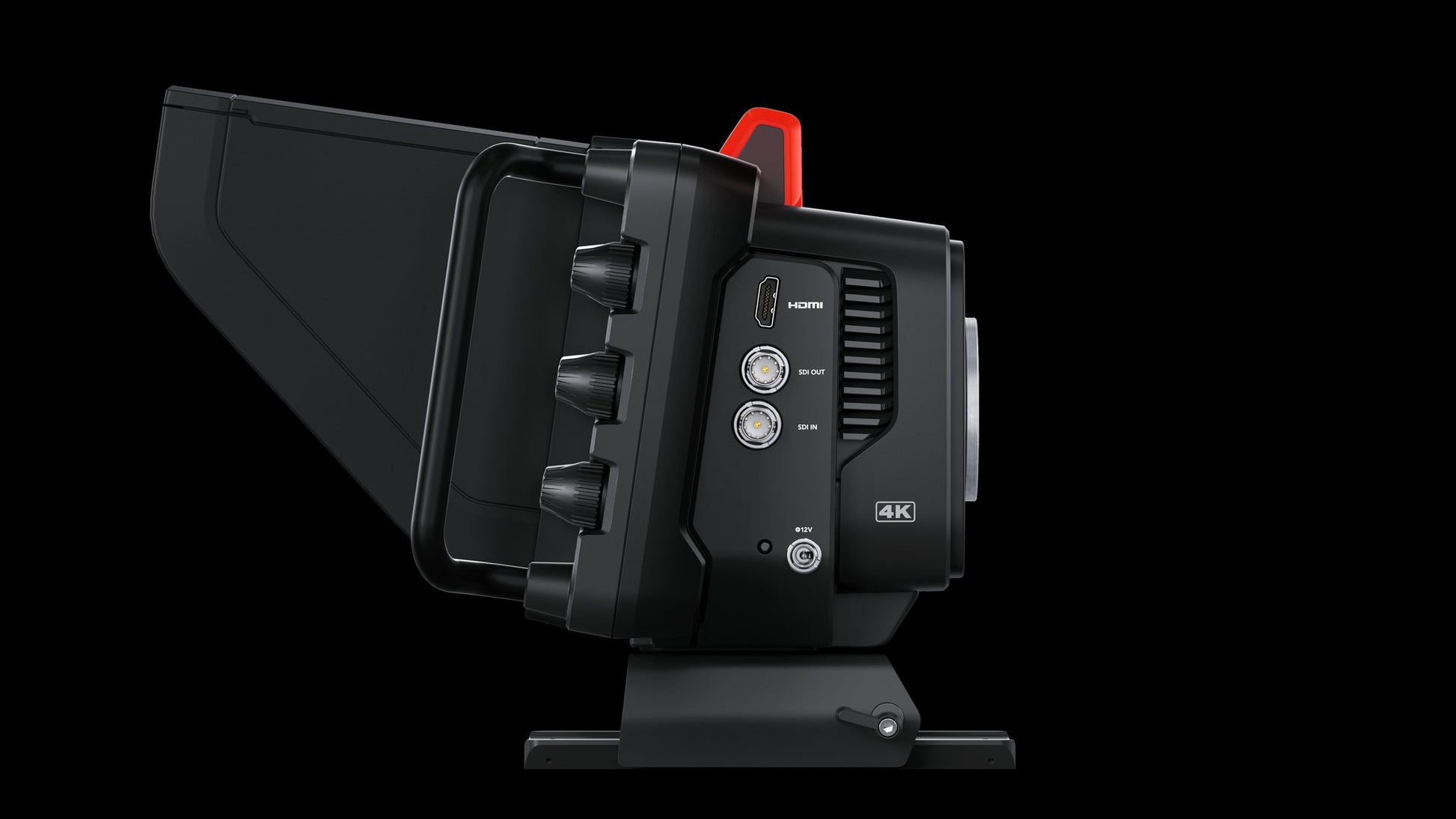

Blackmagic Studio Camera 4K Plus G2
The Blackmagic Studio Camera 4K Plus G2 has the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!
Technical specifications
- Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
- Lens Mount: Active MFT Mount.
- Lens Control: Iris, focus, zoom on supported lenses.
- Dynamic Range: 13 Stops.
- Dual Native ISO: 0dB and 18dB gain.
- Sensitivity at 0dB Gain: f 11 with 2160p59.94.
- Signal to Noise Ratio: 63dB for 2160p.
- Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.
- Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
- Focus: Auto focus available using compatible lenses.
- Screen Dimensions: 7 inch 1920 x 1200
- Screen Type: LCD capacitive touchscreen.
- Screen Brightness: 600 nits
- Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
- Mounting Options: 2 x 1/4 inch tripod mount.
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 1.5G, 3G, 6G, 12G.
- HDMI 2.0 Video Outputs: 1
- Analog Audio Input: 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
- Analog Audio Output: 1 x 3.5mm TRRS mini jack for headphones with mic.
- Reference Input: Program SDI Input on camera.
- SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
- Remote Control: Remote camera control over SDI, HDMI or USB Ethernet.
- Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
- Microphone: Integrated stereo microphone.
- Built in Speaker: 1 x mono speaker.
- SD Video Standards: None
- HD Video Standards: 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
- HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
- Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
- Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
- Storage Type: 2 x USB‑C 3.1 Gen 1 expansion ports for external media.
- Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
- Storage Rates: Storage rates based on 30 frames per second.
- External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
For further information, see Blackmagic Design.
