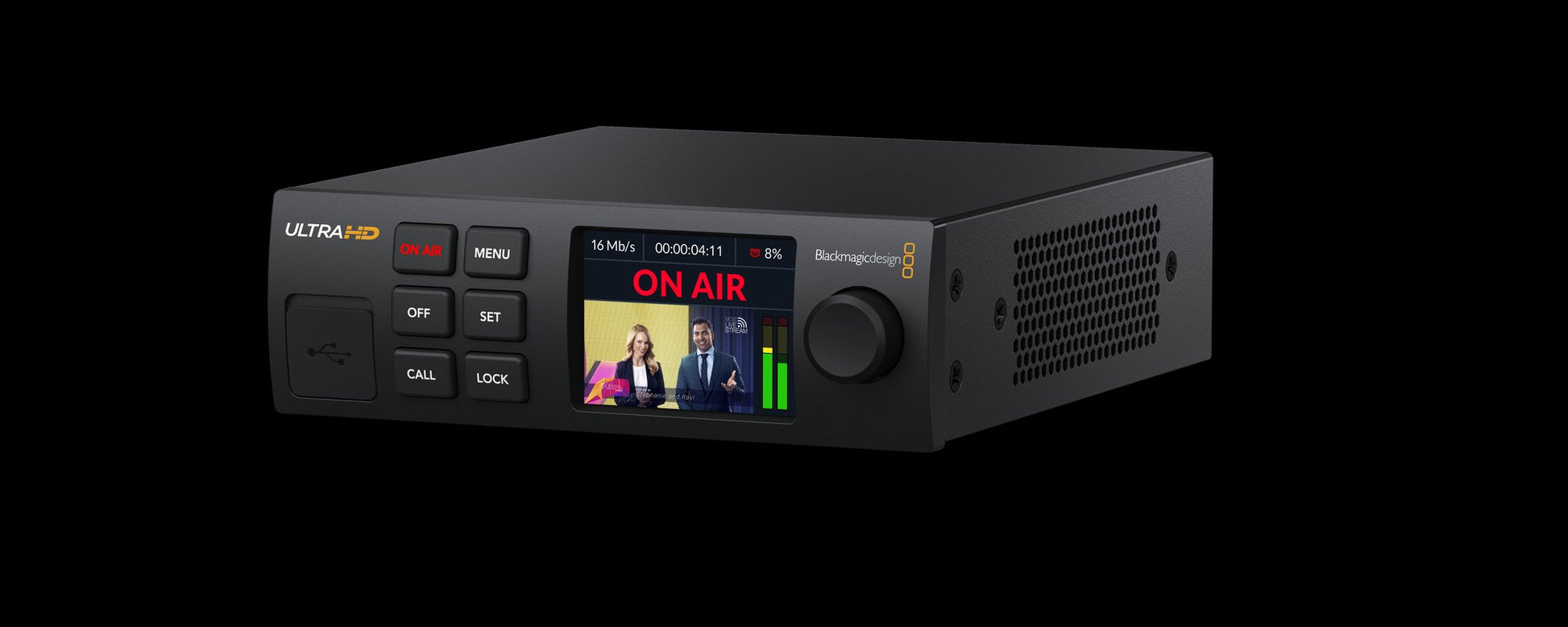

Blackmagic Streaming Encoder 4K

Blackmagic Streaming Encoder 4K

Blackmagic Streaming Encoder 4K is powerful self-contained streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.

Technical specifications

• SDI Video Inputs: 1
• SDI Loop Outputs: 1
• SDI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G
• HDMI Monitor Outputs: 1
• SDI Audio Inputs: 16 channels embedded audio.
• SDI Audio Outputs: 16 channels embedded audio on Loop Out.
• HDMI Audio Outputs: 2 channels embedded audio on Monitor Out.
• Webcam Output: 1 x USB-C up to 2160p60
• Ethernet: Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
• HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
• Video Input Color Space: Rec. 709, Rec. 2020
• 3G SDI: Auto detects SMPTE level A or B on SDI input.
• SDI and HDMI Monitor Out Video Standards: 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• HDR Metadata Support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
• Direct Streaming: Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
• Closed Captions: Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
• Timecode: Support source timecode over RTMP and SRT streams.
• Control Panel: Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
• Device Control: Front panel, USB‑C or Ethernet.
• External Control: Supports remote camera control, color corrector, tally and talkback.
• Compatible Services and Software: Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
• Power Supply: 1 x Internal 100 - 240V AC.
• 12V DC Input: 1 x 4-pin XLR for +12V DC input for external power supply or battery use.
• Power Usage: 25 W
• Physical Installation: One third rack unit width, 1 rack unit height.
• Operating Temperature: 0° C to 40° C (32° - 104°F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

For further information, see Blackmagic Design.
