Blackmagic PYXIS Monitor Kit

Blackmagic PYXIS Monitor Kit

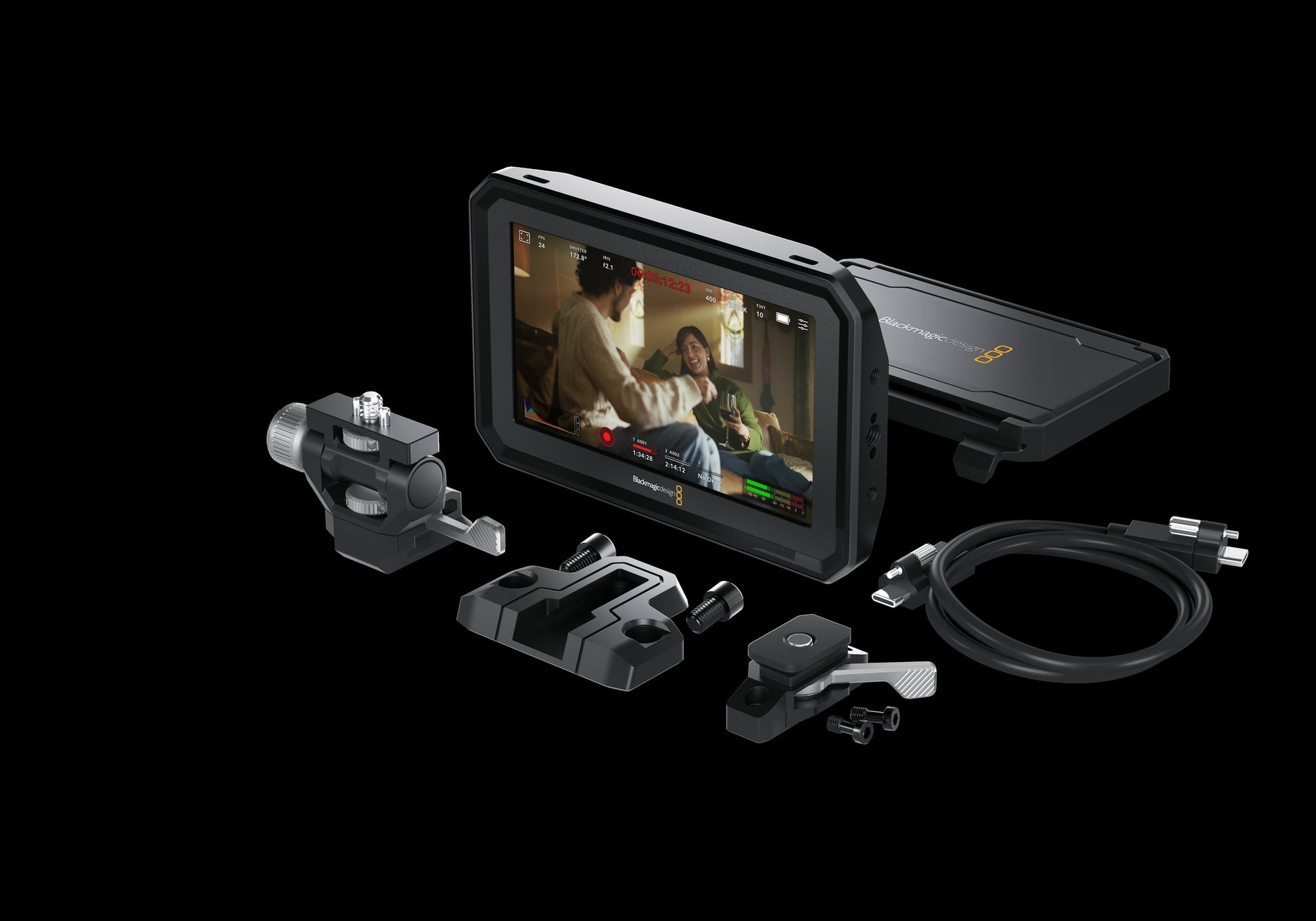

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.

Technical specifications

• USB-C with Locking Connector: Video, power, data and software updates.
• Display Size: 5 inch.
• Display Resolution: Full 1920 x 1080.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 1500 nits.
• Frame Rates: Up to 60fps.
• Tally: Rear facing LED tally light.
• Accelerometer: Automatically rotates image when monitor mounted upside down.
• On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
• Function Button Presets: FPS: Preset Value
• Function Button Toggle: Clean Feed
• Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
• Mounting Brackets: Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit.
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (‑4° to 140°F)
• Relative Humidity: 0% to 90% non‑condensing
• Product Warranty: 1 Year Limited Manufacturer’s Warranty.

For further information, see Blackmagic Design.
