Blackmagic PYXIS Monitor

Blackmagic PYXIS Monitor

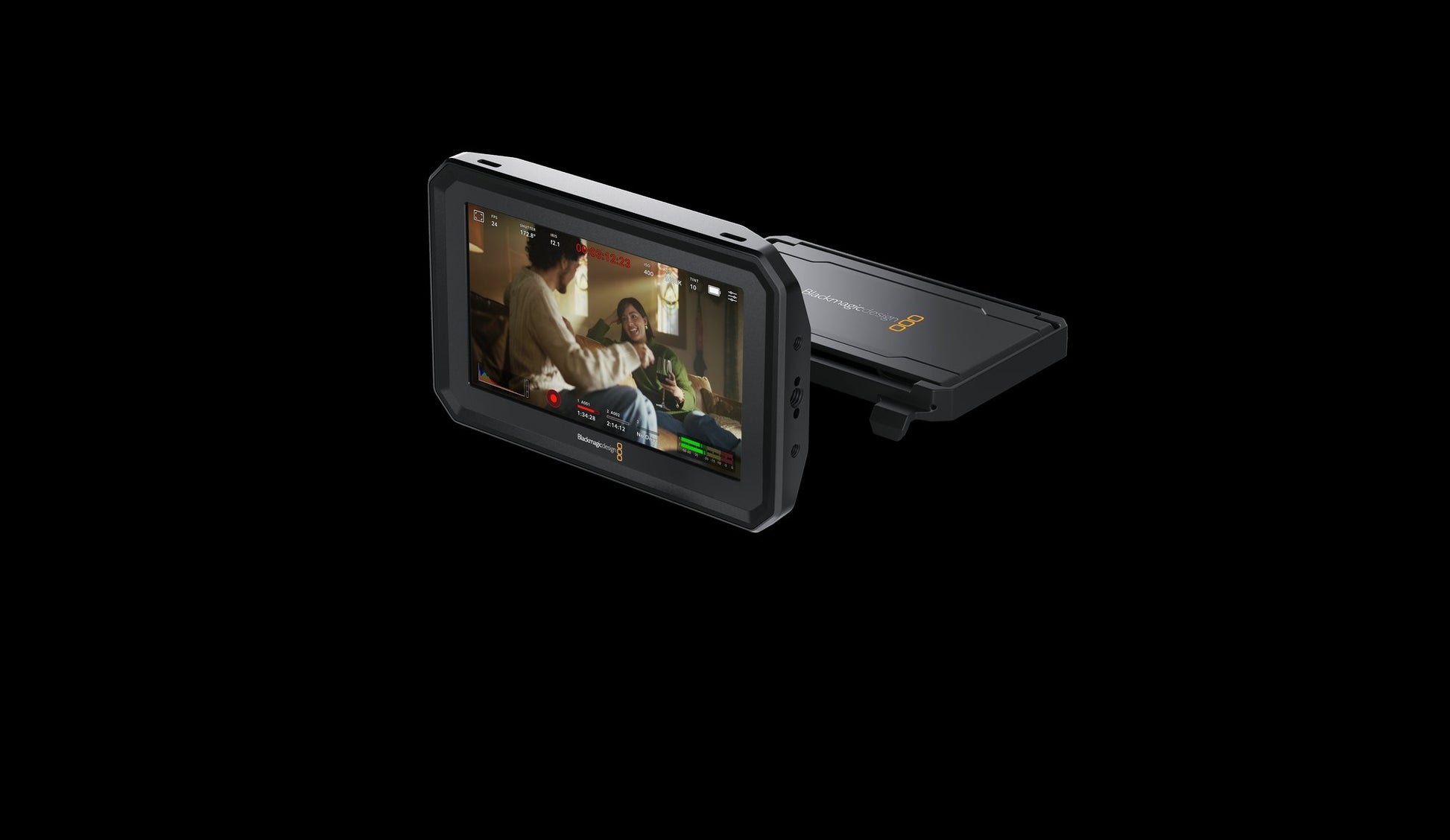

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.

Technical specifications

• USB-C with Locking Connector: Video, power, data and software updates.
• Display Size: 5 inch.
• Display Resolution: Full 1920 x 1080.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 1500 nits.
• Frame Rates: Up to 60fps.
• Tally: Rear facing LED tally light.
• Accelerometer: Automatically rotates image when monitor mounted upside down.
• On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
• Function Button Presets: FPS: Preset Value
• Function Button Toggle: Clean Feed
• Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing
• Product Warranty: 1 Year Limited Manufacturer’s Warranty.

For further information, see Blackmagic Design.
