Description

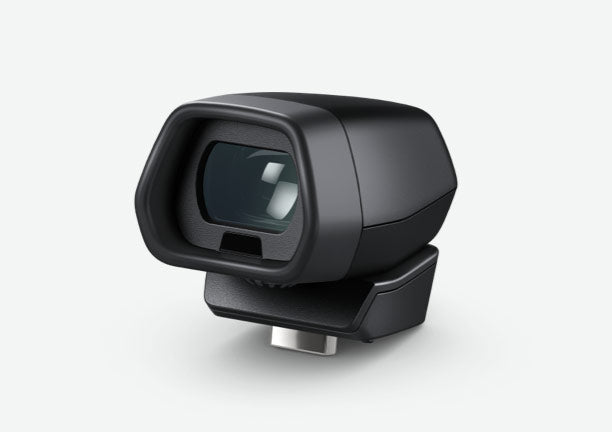

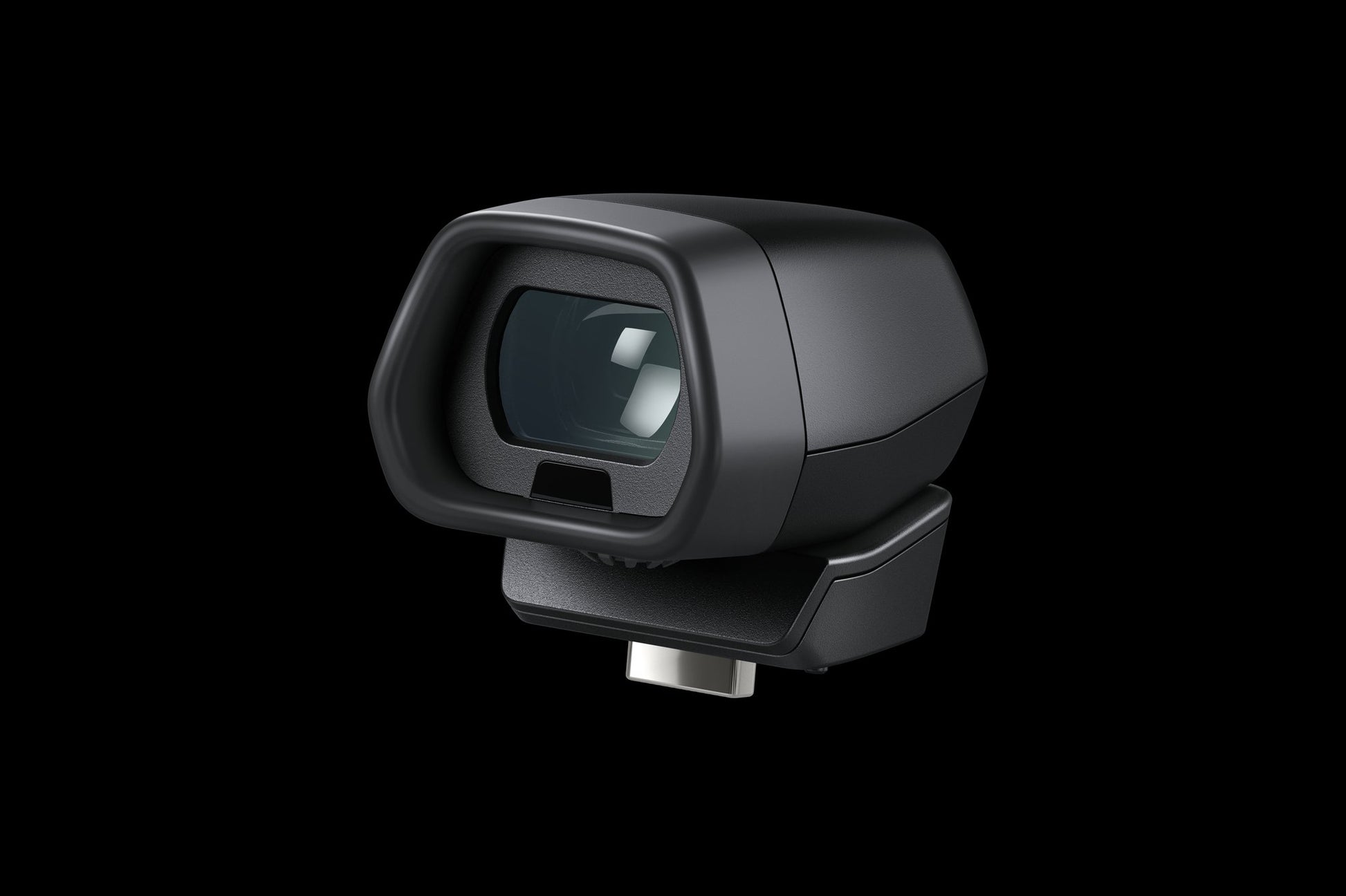

The Blackmagic Pocket Cinema Camera Pro EVF is the perfect accessory to make outdoors and handheld shooting easy! You get a high quality viewfinder with built in proximity sensor, 4 element glass diopter with an incredible -4 to +4 adjustment, built in status information, and a digital focus chart. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector. The viewfinder has up to 70 degree swivel, and comes with a set of 4 eyecups including left and right eye.
Connections
Video and Power Inputs
Via Pocket Cinema Camera 6K Pro EVF connector
Fixing
Integrated M4 x 3.3 (0.7 pitch) locking screw
Features
Display Resolution
1280 x 960
Display Pixels
3.68 million dots
Display Type
Micro OLED
Frame Rates
Up to 60 fps
Color Precision
24 bit RGB, 16.7 million colors
Focus
4 element diopter.
Diopter Range
-4 to +4
Power
Auto ON/OFF controlled by inbuilt proximity sensor.
Controls
Viewfinder display configuration set via Monitor Page in camera menu settings.
Overlays
Camera settings, status and meters displayed in top and bottom blank area.
Eyepiece
Can be tilted +70° vertically.
Eye Cup
4 x interchangeable silicone eye cups including small, medium, left eye and right eye.
Mounting Options
Compatible with Pocket Cinema Camera 6K Pro.
Metadata Support
Supports camera information from Pocket Cinema Camera 6K Pro.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Pocket Cinema Camera Pro EVF
Small Eye Cup
Medium Eye Cup
Left Eye Cup
Right Eye Cup
Warranty
12 Month Limited Manufacturer’s Warranty.
