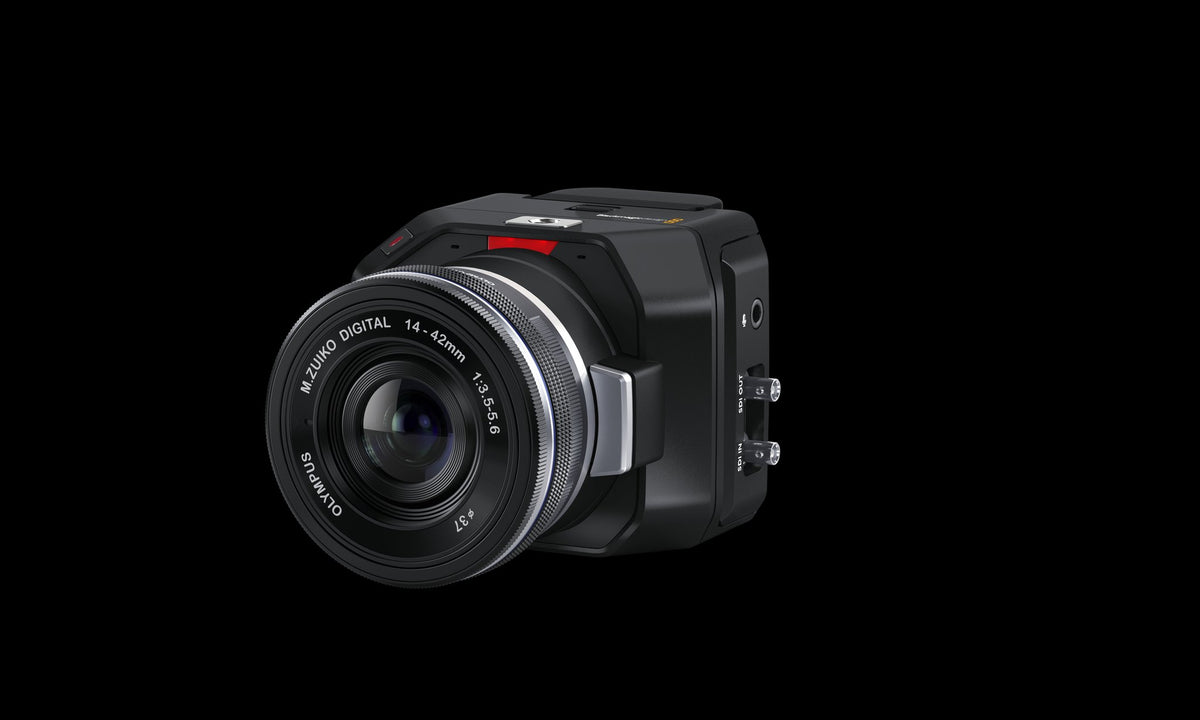

Blackmagic Micro Studio Camera 4K G2

Blackmagic Micro Studio Camera 4K G2

Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!

Technical specifications

• Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
• Lens Mount: Active MFT Mount.
• Lens Control: Iris, focus, zoom on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 0dB and 18dB gain.
• Sensitivity at 0dB Gain: f 11 with 2160p59.94.
• Signal to Noise Ratio: 63dB for 2160p.
• Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.
• Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
• Focus: Auto focus available using compatible lenses.
• Metadata Support: Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
• Mounting Options: 1 x 1/4 inch (top),
• SDI Video Inputs: 1 x 12G‑SDI Micro BNC
• SDI Video Outputs: 1 x 12G‑SDI Micro BNC
• SDI Rates: 3G, 6G, 12G
• HDMI 2.0 Video Outputs: 1
• HDMI Video Outputs: 1 x HDMI Type A output.
• Analog Audio Input: 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
• Reference Inputs: Program SDI Input on camera.
• SDI Audio Output: 2 channels of program audio embedded in 3G/6G/12G-SDI.
• HDMI Audio Outputs: 2 channels 48 kHz and 24‑bit.
• Remote Control: Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
• Computer Interface: 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port.
• Microphone: Integrated stereo microphone.
• Built in Speaker: None
• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
• Media: 1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
• Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
• Storage Type: 1 x USB‑C 3.1 Gen 1 expansion ports for external media.
• Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
• Storage Rates: Storage rates based on 30 frames per second.
• Control: 5 control buttons including Set, Up, Down, Menu, and Power.
• External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
• NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
• Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.

For further information, see Blackmagic Design.
