Product information
Overview

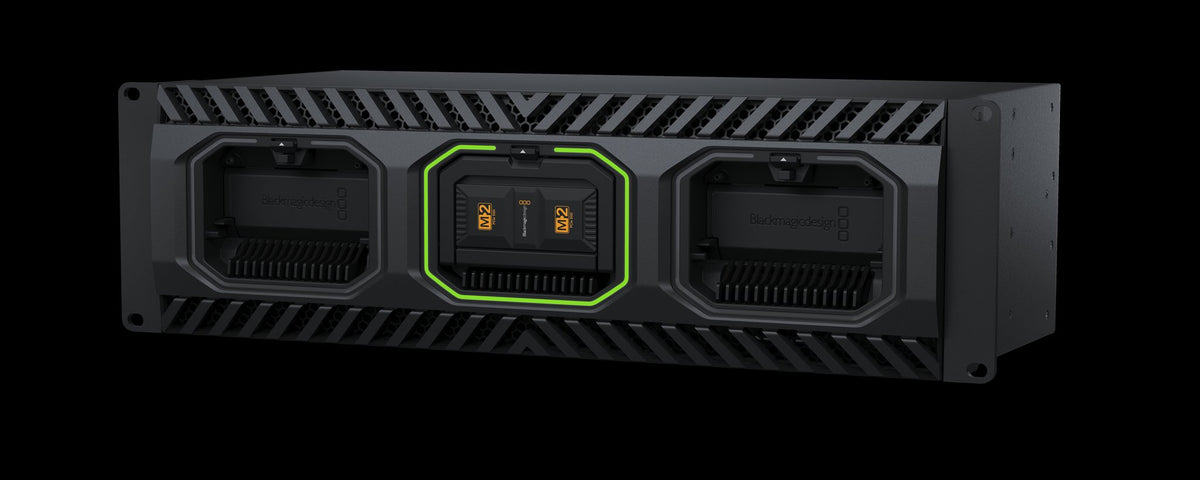

Blackmagic Media Dock Ultra
Blackmagic Media Dock Ultra accelerates your post production workflow by enabling incredibly high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 2 x 100G Ethernet ports allow multiple edit stations to connect and edit directly. Blackmagic Media Dock Ultra also has dual AC power inputs for redundancy and 2 x SDI and an HDMI output for live monitoring of media in real time on a TV or monitor.
Technical specifications
- 100G Ethernet: 2 x 100G QSFP28 connections.
- 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
- SDI Monitor Outputs: 2
- HDMI Monitor Outputs: 1
- SDI Rates: 1.5G, 3G.
- Computer Interface: 1 x USB-C for Cloud Store Setup utility and software updates.
- Power: 2 x IEC C14 power inputs.
- Protocol: NFS (HFS+ formatted disks only)
- Computer Connections: 200 max.
- Storage Type: Up to 3 Blackmagic Media Modules.
- External Storage Format: Blackmagic (formatted in camera)
- Status Indicator: LED bezel indicator lights around media module bays.
- Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
- SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- External Control: USB-C or Ethernet for configuration and software updates.
- Software Included: Blackmagic Cloud Setup Utility
- Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
- Power Inputs: 2 x IEC C14 sockets.
- Power Usage: TBC
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non‑condensing
For further information, see Blackmagic Design.
