Product information
Overview

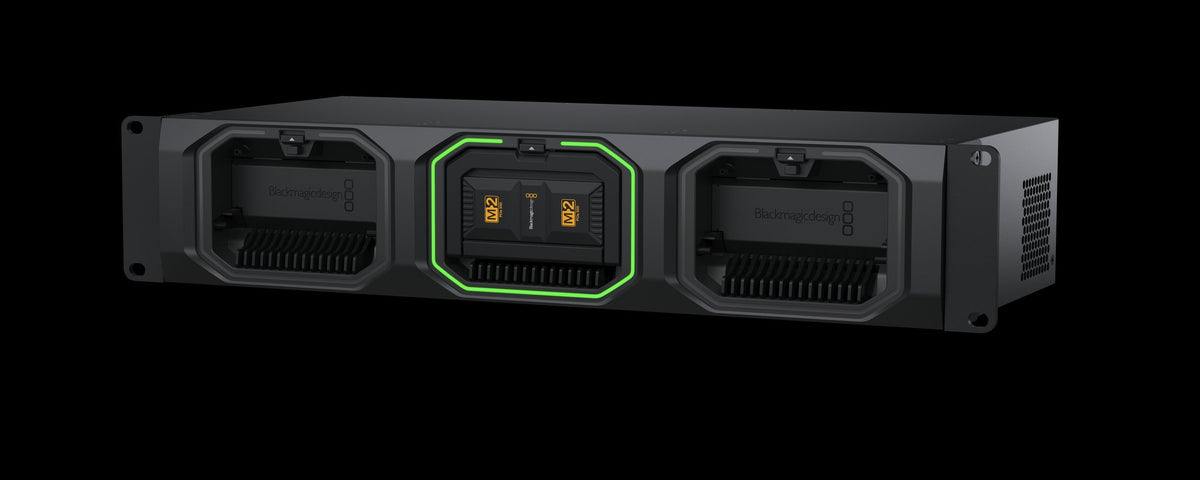

Blackmagic Media Dock
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
Technical specifications
- Interface: 3 x removable and hot-swappable Blackmagic Media Modules.
- 10G Ethernet Ports: 4 x 10G BASE-T
- USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
- HDMI Monitor Outputs: 1
- Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.
- Protocol: NFS (HFS+ formatted disks only)
- Computer Connections: 200 max.
- Storage Type: Up to 3 Blackmagic Media Modules.
- External Storage Format: Blackmagic (formatted in camera)
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
- Status Indicator: LED bezel indicator lights around media module bays.
- External Control: USB-C or Ethernet for configuration and software updates.
- Software Included: Blackmagic Cloud Setup Utility
- Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
- Power Usage: 95 W
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
For further information, see Blackmagic Design.
