Product information
Overview

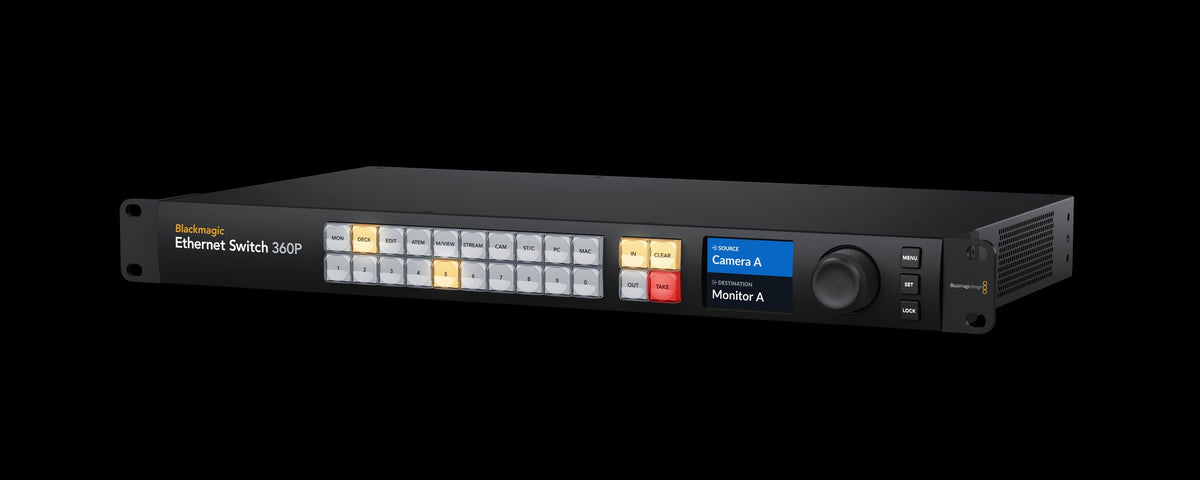

Blackmagic Ethernet Switch 360P
Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for the film and television industry. It is a high performance low latency Ethernet switch with 16 fast 10G Ethernet and 2 high speed 100G Ethernet ports, QSFP connection for high speed copper cables or longer optical fiber cables, rear Ethernet connections for better cable management and NMOS protocol for 2110 IP video workflows.
Technical specifications
- 10G Ethernet Ports: 16 x 10Gb/s RJ‑45 connectors supporting 100/1000/10G BASE‑T.
- 100G Ethernet Ports: 2 x 100Gb/s QSFP28 connectors.
- SDI Monitor Outputs: 1
- HDMI Monitor Outputs: 1
- Computer Interface: USB‑C
- Precision Time Protocol: IEEE 1588-2008 (PTP v2)
- NMOS IS-04 Discovery and Registration: v1.3.2
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP‑002‑01: Natural Grouping
- NMOS BCP‑004‑01: Receiver capabilities
- SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, network connections, network activity.
- Front Panel Display: Built in 2.2 inch LCD for video and menu settings.
- Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
- Power Inputs: 1 x IEC C14 mains input.
- Power Usage: 100 W
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: ‑20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
For further information, see Blackmagic Design.
