Blackmagic Cloud Store Ultra 24TB

Blackmagic Cloud Store Ultra 24TB

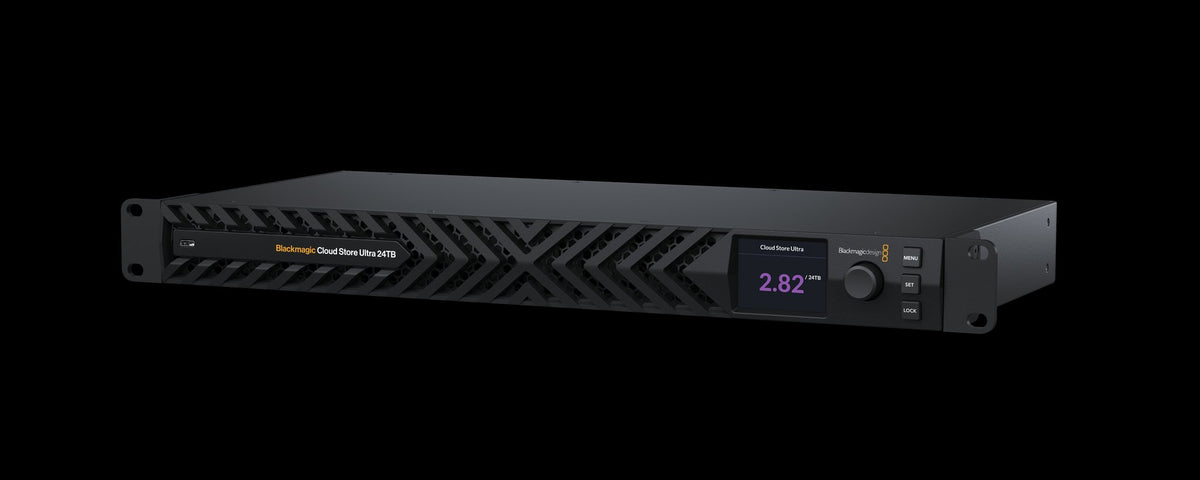

Blackmagic Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time.

Technical specifications

• 100G Ethernet Networks: 2 x 100G QSFP28 connections.
• 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
• SDI Monitor Outputs: 2
• HDMI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G.
• Computer Interface: 1 x USB-C for Cloud Store Setup utility and software updates.
• Power: 2 x IEC C14 power inputs.
• Protocol: NFS
• Computer Connections: 200 max.
• Storage Type: M.2 NVMe SSD
• Total Capacity: 24TB
• Front Panel Display: Built in 2.2 inch LCD for settings plus storage name, capacity and use.
• Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
• SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
• HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
• Built in Control Panel: 3 buttons, 2.2 inch color display and spin knob for menu settings.
• External Control: USB-C or Ethernet for configuration and software updates.
• Software Included: Blackmagic Cloud Setup Utility
• Blackmagic Proxy Generator Lite: Internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port.
• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC
• Physical Installation: 1 rack unit.
• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing

For further information, see Blackmagic Design.
