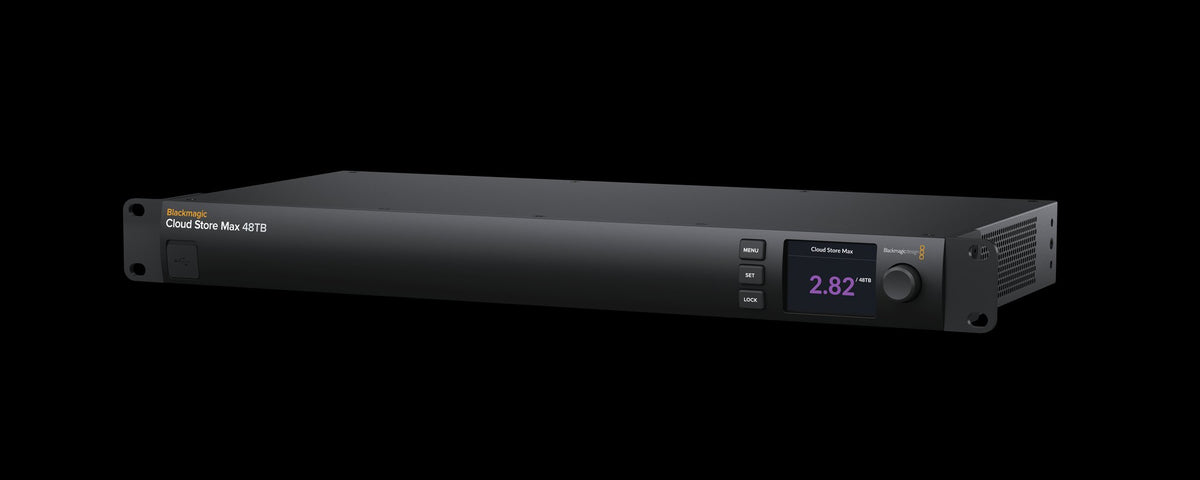

Blackmagic Cloud Store Max 48TB
Blackmagic Cloud Store Max 48TB is an extremely high performance flash storage solution in a compact 1RU design. Cloud Store Max features 48TB capacity 12 card RAID 0 flash memory core, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high speed copper cables or longer optical fiber cables, USB-C and Blackmagic Cloud sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time!
Technical specifications
- 10G Ethernet Ports: 4 x RJ45 Ethernet 100/1000/10G BASE-T
- 100G Ethernet Ports: 1 x QSFP28 Ethernet 100G BASE-T
- USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
- SDI Monitor Outputs: 1
- HDMI Monitor Outputs: 1
- Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.
- Protocol: NFS
- Computer Connections: 200 max.
- Storage Type: M.2 NVMe SSD
- Total Capacity: 48TB
- SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
- Front Panel Display: Built in 2.2 inch LCD for settings and storage name, capacity and use.
- Status Indicator: Front panel LED illuminates white indicating normal operation or red indicating disk fault.
- Built in Control Panel: 3 buttons, 2.2 inch color display and spin knob for menu settings.
- External Control: USB-C or Ethernet for configuration and software updates.
- Software Included: Blackmagic Cloud Setup Utility
- Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
- Power Inputs: 1 x IEC C14 mains input.
- Power Usage: 150 W
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
