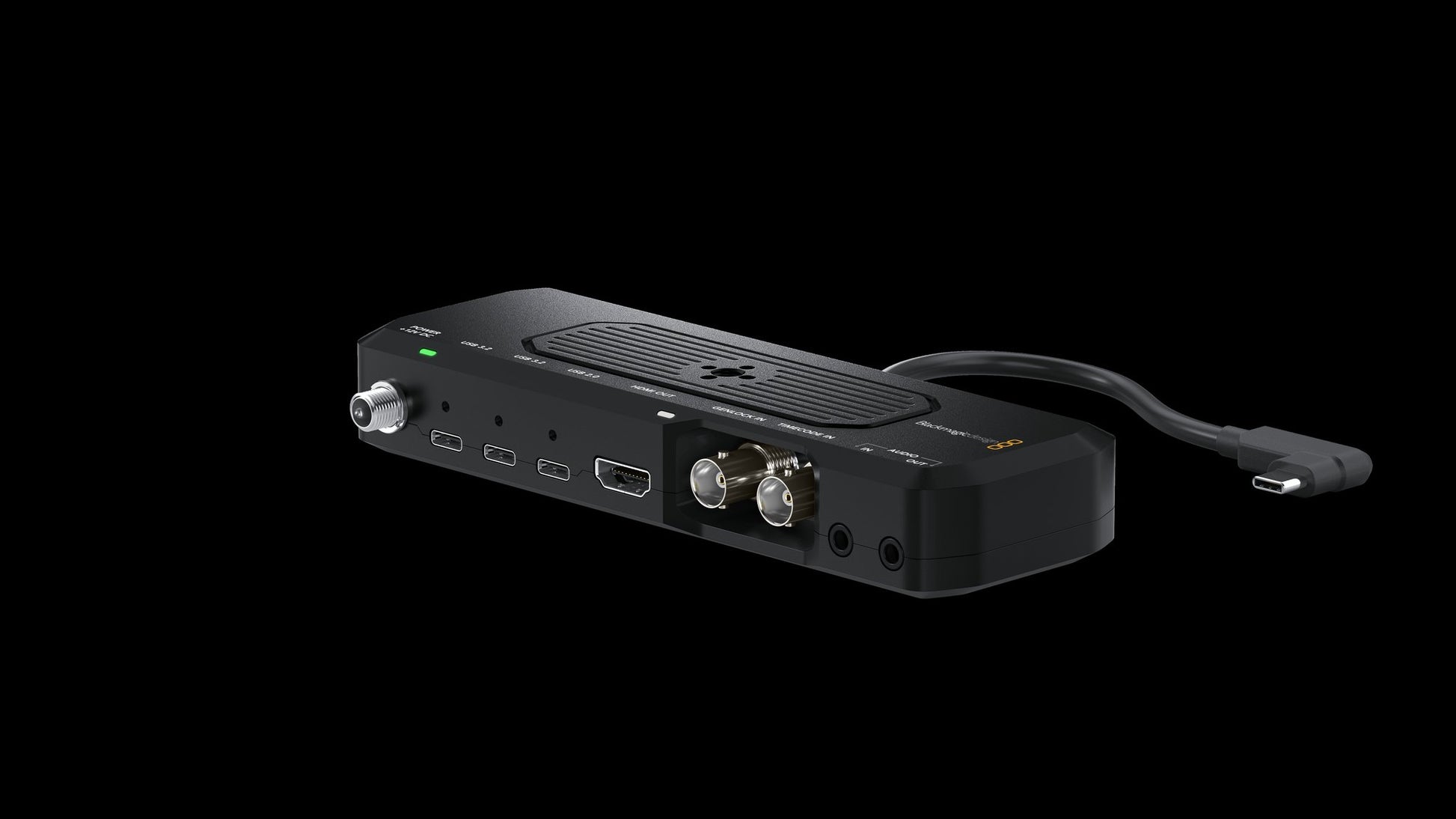

Blackmagic Camera ProDock

Blackmagic Camera ProDock

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. You get 3 USB-C ports so you can connect control accessories and external SSDs for recording, plus the power management will ensure everything can run at the same time.

Technical specifications

• HDMI Video Outputs: 1 x HDMI 2.1 (Type A)
• Audio Inputs: 1 x 3.5mm stereo mini-jack.
• Audio Outputs: 1 x 3.5mm stereo mini-jack.
• Timecode Input: 1 x BNC,
• Genlock Input: 1 x BNC, Tri-Sync or Black Burst.
• USB-C Ports: 2 x USB 3.2 high speed ports for recording to external media
• Power: +12V to +15V DC input with locking 5.5mm barrel connector.
• iPhone Connection: 1 x USB-C cable and plug.
• Microphone: Connect external microphones via the 3.5mm stereo mini-jack, or USB‑C ports.
• Monitor: Connect headphones via the 3.5mm stereo mini-jack audio output.
• Media: Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB.
• Status Indicator: 1 x power LED indicator,
• Blackmagic Camera for iOS Download for free on the App Store. Operating System Supported on iPhones running iOS 26 or later. Genlock available on iPhone 17 Pro and iPhone 17 Pro Max models only. Support for all other features available on iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16 Pro, and iPhone 16 Pro Max models. Power Power Supply: 1 x External 12V DC 60W power supply.
• Power Inputs: +12V to +15V DC input with locking 5.5mm barrel connector.
• Power Outputs: 5V 𝌂 1.5A 7.5W max output each USB‑C port.
• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing
• Product Warranty: 1 Year Limited Manufacturer’s Warranty.

For further information, see Blackmagic Design.
