Overview

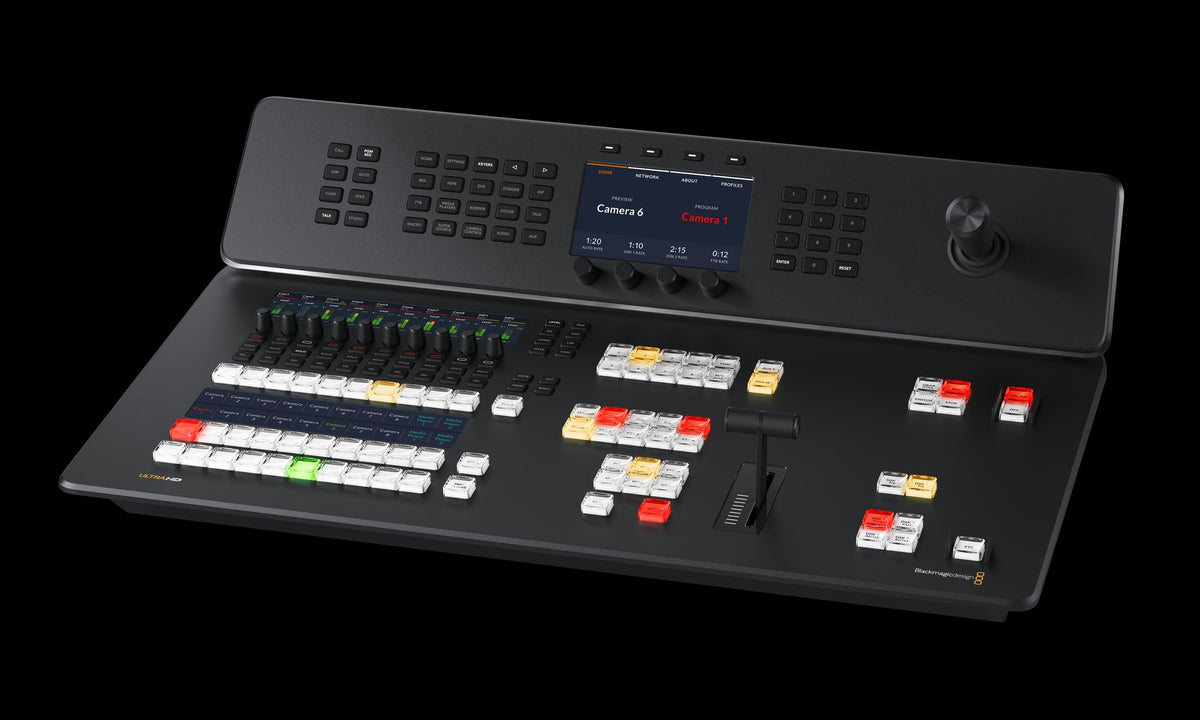

ATEM Television Studio 4K8
ATEM Television Studio 4K8 is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, talkback and more!
Technical specifications
- SDI Video Inputs: 8
- SDI Video Outputs: 12
- SDI Rates: 1.5G, 3G, 6G, 12G
- HDMI Video Outputs: 1
- Total Audio Inputs: 2 x XLR balanced analog audio,
- Total Audio Outputs: 4 x 1/4 inch Jack analog audio,
- SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs.
- SDI Audio Outputs: 16 assignable channels.
- Timecode Connections: 1 x BNC In, 1 x BNC Out.
- Reference Input: 1 x BNC In, 1 x BNC Out.
- Video Input Re-Sync: On all 8 inputs.
- Frame Rate and Format Converters: On all 8 inputs.
- SDI Aux Outputs: 10
- SDI Program Outputs: 1
- Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
- Total Multi Views: 1 x 12G-SDI
- Remote: RJ12 supports RS-422
- Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
- Internal Timecode Generator: Yes
- Talkback: RJ45 for 3rd party talkback systems.
- Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
- Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
- Computer Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
- SD Video Standards: None
- HD Video Input Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
- Video Sampling: 4:2:2
- Color Precision: 10-bit.
- Color Space: Rec 709
- SDI Auto Switching: Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
- Number of Mix Effects Rows: 1
- Direct Cross Points: 10
- Shifted Cross Points: 20
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 6 rows 24 character LCD
- Preview Transition: 1
- Source Select Bus: 1
- Dedicated Macro Buttons: 10 plus shift 10
- Transition Type Buttons: 5
For further information, see Blackmagic Design.
