ATEM SDI

Atem Sdi

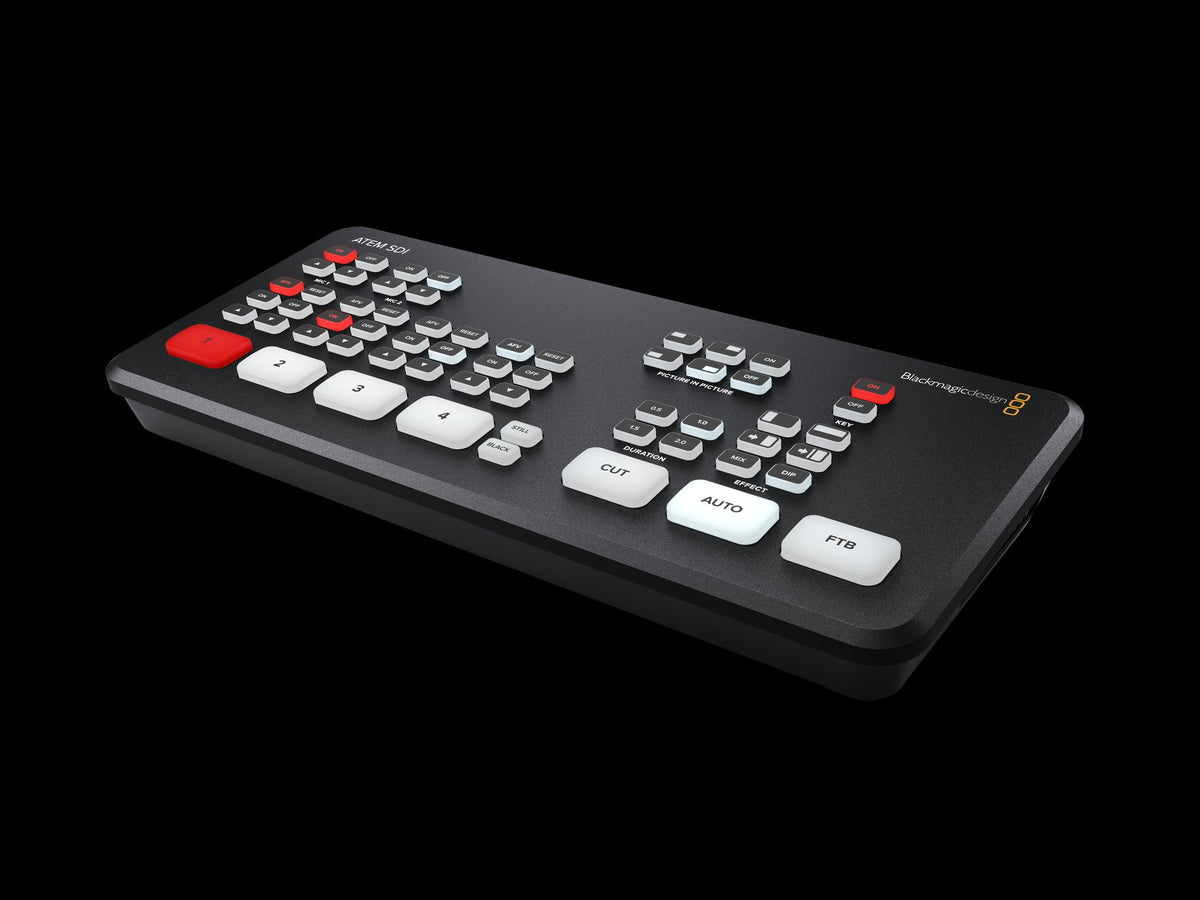

ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

Technical specifications

• Total Video Inputs: 4
• Total Outputs: 3
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5mm stereo mini jack.
• Total Audio Outputs: None, embedded audio only.
• Timecode Connection: None
• SDI Video Inputs: 4 x 3G-SDI, 10-bit HD switchable.
• Video Input Re-Sync: On all 4 SDI inputs.
• Frame Rate and Format Converters: On all 4 SDI inputs.
• SDI Program Outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
• Computer Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
• HD Video Input Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• Colorspace Conversion: Hardware based real time.
• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only.
• Total Number of Layers: 5
• Pattern Generators: 1
• Color Generators: 2
• DVE With Borders and Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768.
• Audio Mixer: 6 input x 2 channel mixer.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug In Power: Available on both 3.5mm mini jack connections.
• Media Players: 1
• Channels: Fill and key for each Media Player.
• Media Pool Still Image Capacity: 20 with fill and key.
• Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

For further information, see Blackmagic Design.
