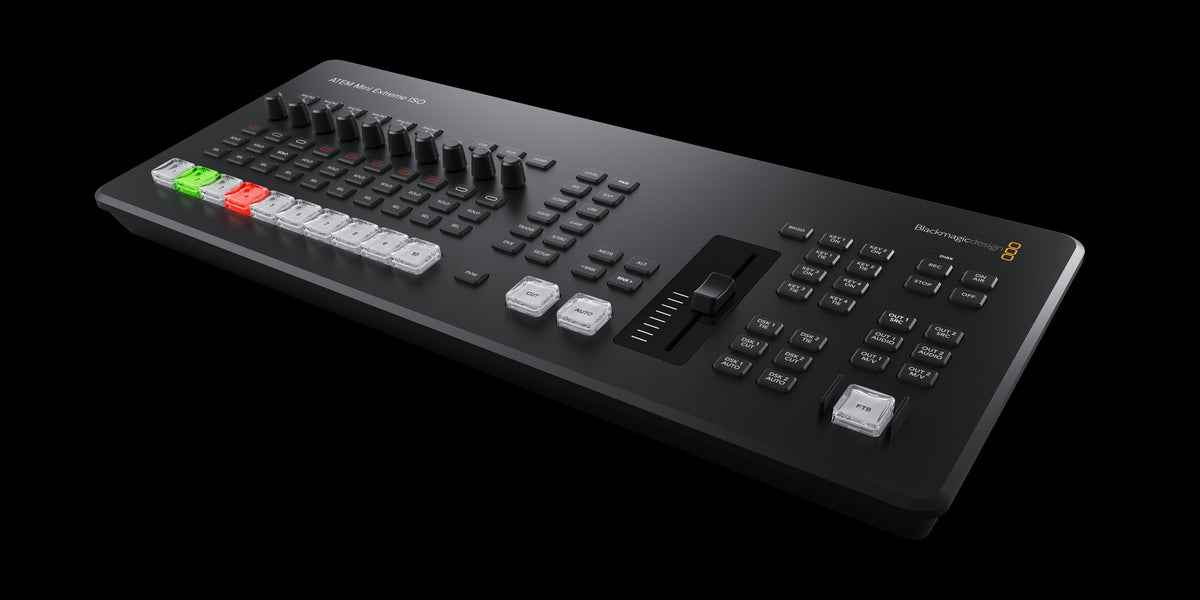

ATEM Mini Extreme ISO G2
ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Technical specifications
- Total Video Inputs: 9
- Total Outputs: 4
- Total Aux Outputs: 4
- SDI Rates: 1.5G, 3G
- HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
- HDMI Video Outputs: 3
- HDMI Program Outputs: 3
- Total Audio Inputs: 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio.
- Total Audio Outputs: 1 x 6.35mm headphone jack
- Timecode Connection: None
- Reference Input: None
- Video Input Re-Sync: On all 8 HDMI inputs and remote sources
- Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
- Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
- Total Multi Views: 1 Routable to any of the 3 x HDMI outputs, 2 x USB‑C webcam outputs or 1 x Thunderbolt output.
- Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
- Internal Timecode Generator: Yes
- Tally Output: On Blackmagic HDMI and remote cameras.
- Ethernet: 1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording.
- Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
- HD Video Input Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
- HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Video Sampling: 4:2:2 YUV
- Color Precision: 10-bit
- Color Space: Rec 709
- HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
- Colorspace Conversion: Hardware based real time.
- SDI Auto Switching: -
- Number of Mix Effects Rows: 1
- Direct Cross Points: 10
- Crosspoint Button Type: NKK Buttons
- Preview Transition: 1
- Source Select Bus: Set using Multi Function Controls and Fairlight Audio Status Output.
- Dedicated Macro Buttons: 6
- Transition Type Buttons: Set using Multi Function Controls and Fairlight Audio Status Output.
- Transition Rate: Set using Multi Function Controls and Fairlight Audio Status Output.
- Key Buttons: 8
- AUX Buttons: 6
- Fader Bar: 1
For further information, see Blackmagic Design.
