Product information
Overview

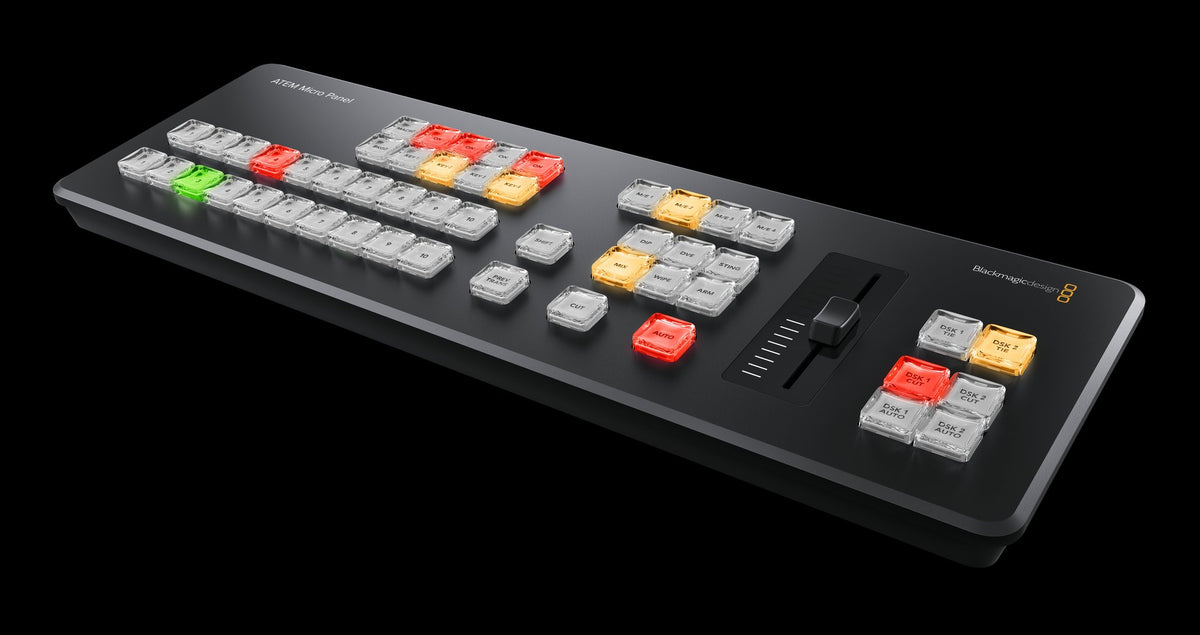

ATEM Micro Panel
The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Technical specifications
- Computer Interface: USB Type‑C.
- Bluetooth: Bluetooth 5.1 LE
- Number of Mix Effects Rows: 1
- Direct Cross Points: 10
- Shifted Cross Points: 20
- Crosspoint Button Type: Tri-Color LED
- Preview Transition: 1
- Switching Type Buttons: CUT and AUTO
- Transition Type Buttons: DIP, DVE, STINGER, MIX, WIPE.
- M/E Select Buttons: 4
- Upstream Key Buttons: 4 with ON/OFF
- Downstream Key Buttons: 2 with ON/OFF
- Transition Slider: 1
- Software Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
- Power Supply: Internal battery with power switch.
- Power Usage: 3 W max.
- Battery Life: Minimum 6 hours.
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
For further information, see Blackmagic Design.
