Description

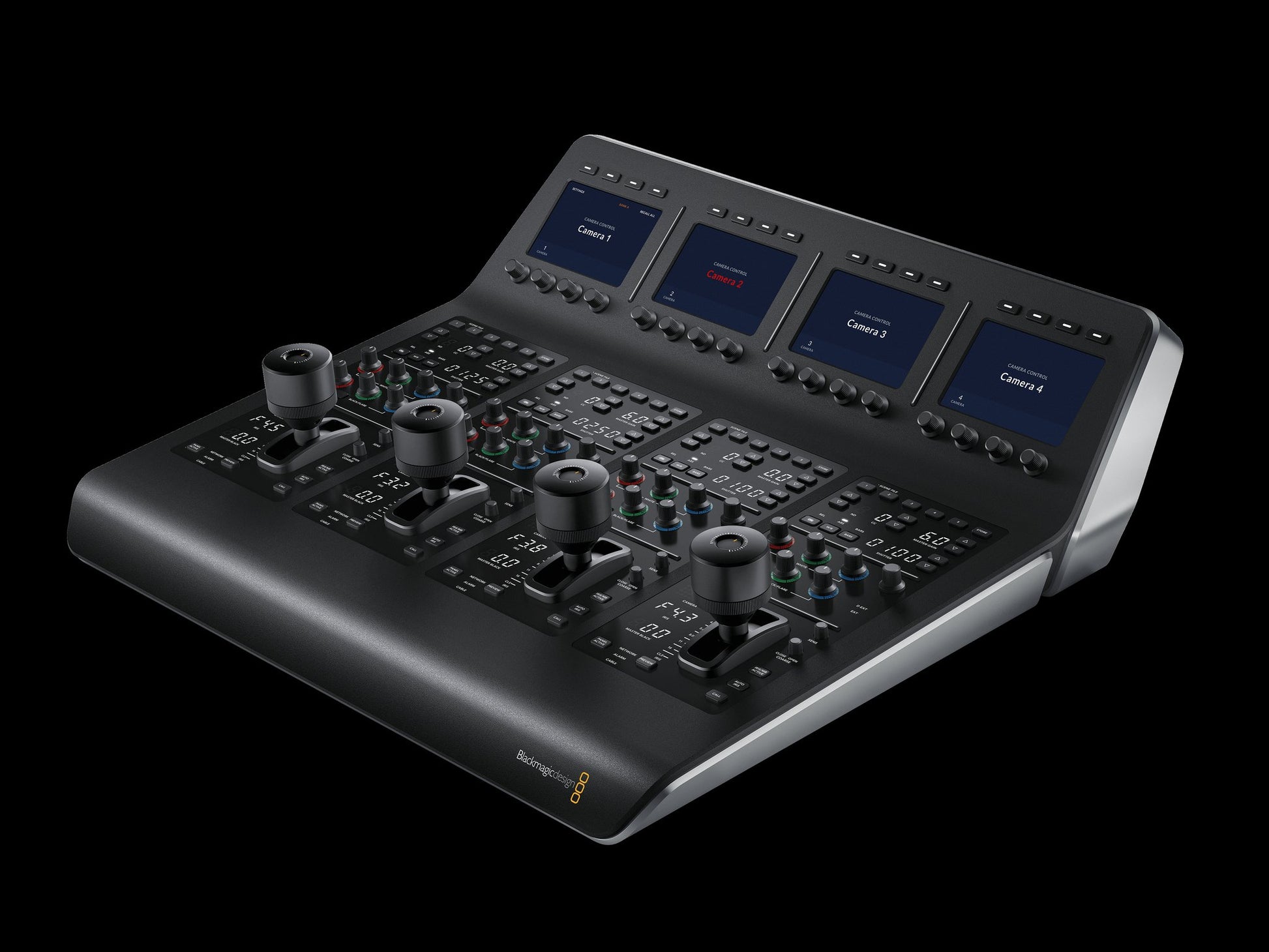

The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Connections
Ethernet
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers.
Software Updates
1 x USB-C for firmware updates.
Product Specifics
LCD Menu Displays
4
Camera Number Display
Green off air, red on air.
Setup
White and black balance setup.
3 Axis Joystick
4
Preview Button
4
Iris Control
Auto Iris On, Coarse control.
Panel Active
Protects settings.
Software
Software Applications
ATEM Software Control Panel.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 or Windows 10.
Power Requirements
Input Voltage
1 x Internal 100 - 240V AC.
DC Power
12-30V 3A.
Redundant Power
Yes
Power Usage
30W
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
Up to 95%
What's Included
ATEM Camera Control Panel
Warranty
12 Month Limited Manufacturer's Warranty.
