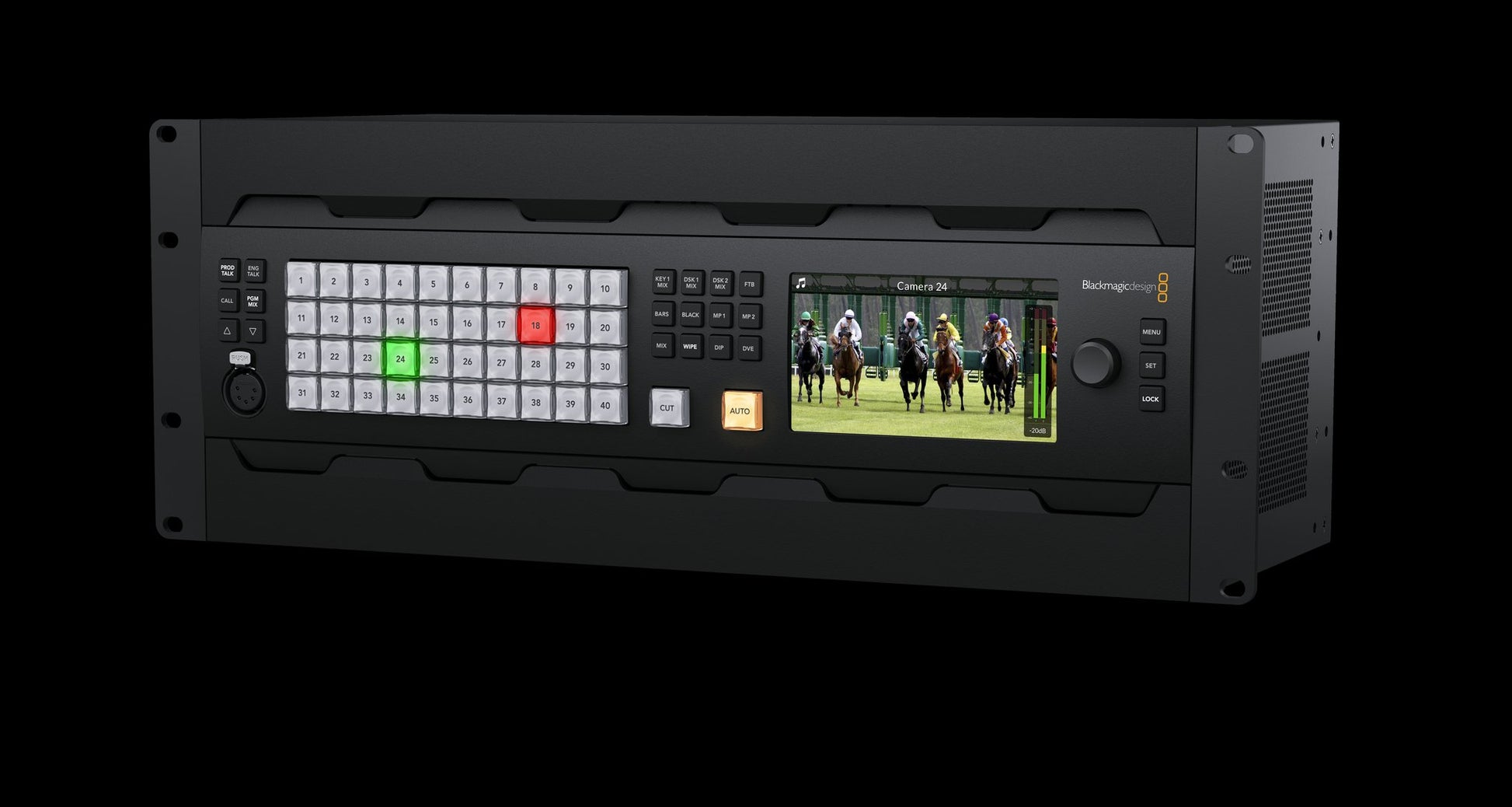

ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!

Technical specifications

• Total Video Inputs: 80
• Total Video Outputs: 52
• Total Aux Outputs: 48
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Total Audio Inputs: 2 x balanced 1/4 inch jack,
• Total Audio Outputs: 2 x balanced 1/4 inch jack,
• Timecode Connections: 1 x 3-pin XLR Timecode In,
• Reference Input: Tri-Sync or Black Burst.
• Video Input Re-Sync: On all 80 inputs.
• Frame Rate and Format Converters: On all 80 inputs.
• SDI Video Inputs: 80 x 10-bit 720p, 1080i, 1080p, 2160p.
• SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs.
• Extra Audio Inputs: 1 x 5 pin XLR Talkback.
• SDI Video Outputs: 52 x 10-bit 720p, 1080i, 1080p, 2160p.
• SDI Audio Outputs: 16 Ch embedded into SDI output on all outputs.
• Extra Audio Outputs: 1 x 5 pin XLR Talkback.
• SDI Program Outputs: Any of the 48 SDI outputs.
• Down Converted SDI Program Outputs: 8
• SDI Preview Outputs: Any of the 48 SDI outputs
• SDI Multi View Outputs: 4 x dedicated outputs,
• HDMI Multi View Outputs: None
• Webcam Output: 1 x USB-C supporting 720p or 1080p at program frame rate.
• Remote: RJ12 supports RS-422.
• Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
• Internal Timecode Generator: Yes
• Talkback: RJ45 for 3rd party talkback systems.
• Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
• Computer Interface: 1 x USB-C port.
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
• SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
• Video Sampling: 4:2:2
• Color Precision: 10-bit.
• Color Space: Rec. 709, Rec. 2020
• SDI Auto Switching: Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
• Upstream Keyers: 16
• Downstream Keyers: 4
• Advanced Chroma Keyers: 16
• SuperSource: 2

For further information, see Blackmagic Design.
