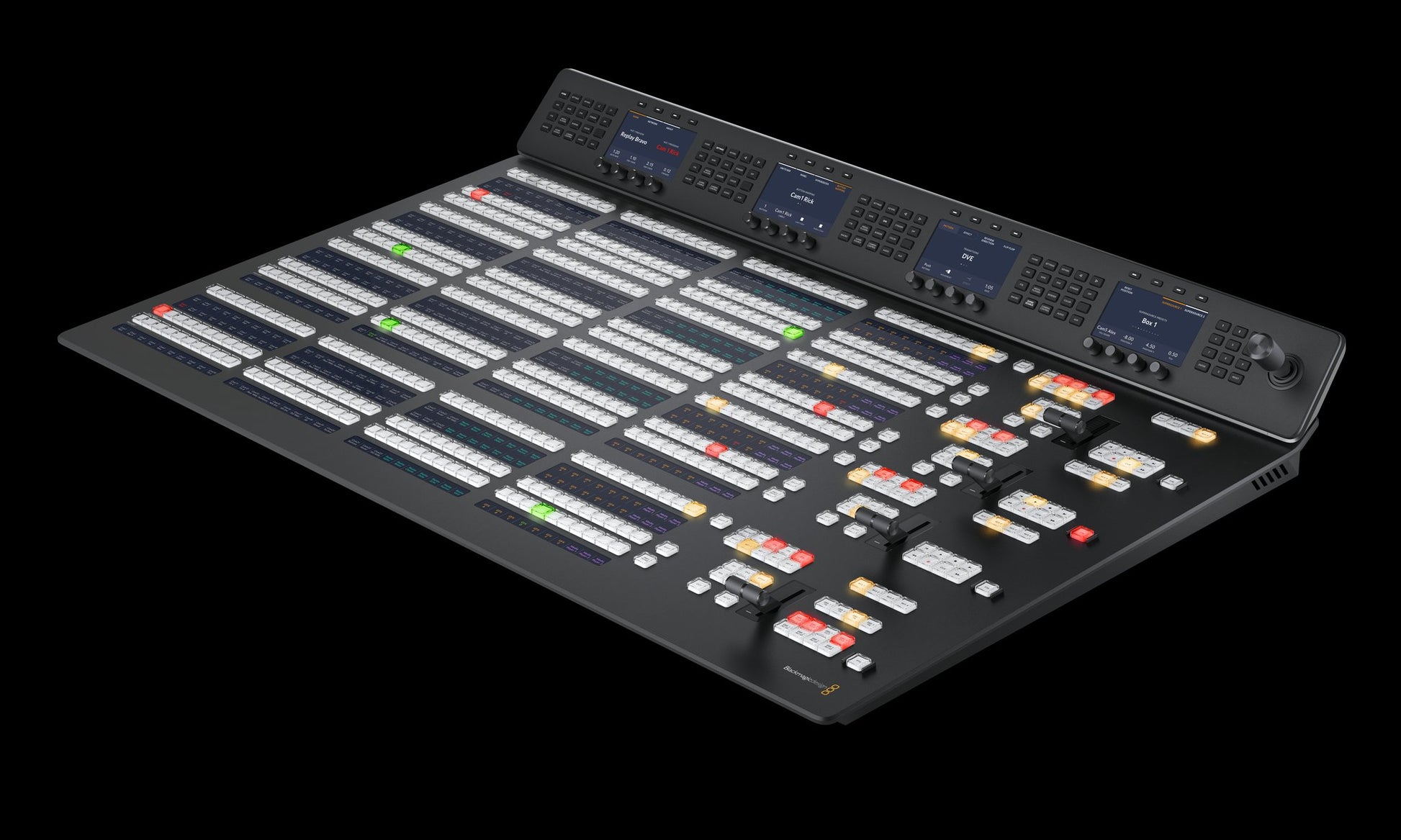

ATEM 4 M/E Advanced Panel 40
This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!
Technical specifications
- Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
- Software Updates: 1 x USB-C for firmware updates.
- Number of Mix Effects Rows: 4
- Direct Cross Points: 40
- Shifted Cross Points: 80
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 10 rows 24 character LCD
- On-Air indicator: 20
- Power Status Indicators: None
- DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
- Preview Transition: 4
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 4
- Menu Control: 4 x 20 buttons
- Dedicated Macro Buttons: 4 x 40
- Transport Control Buttons: 24
- Destination Bus: 4
- Source Select Bus: 4
- Fader Bar: 4
- 3 Axis Joystick: 1
- Numeric Keypad: 1
- Software Applications: ATEM Software Control Panel.
- Input Voltage: 2 x Internal 100 - 240V AC.
- Redundant Power: Yes
- Power Usage: 250W
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: Up to 95%
For further information, see Blackmagic Design.
