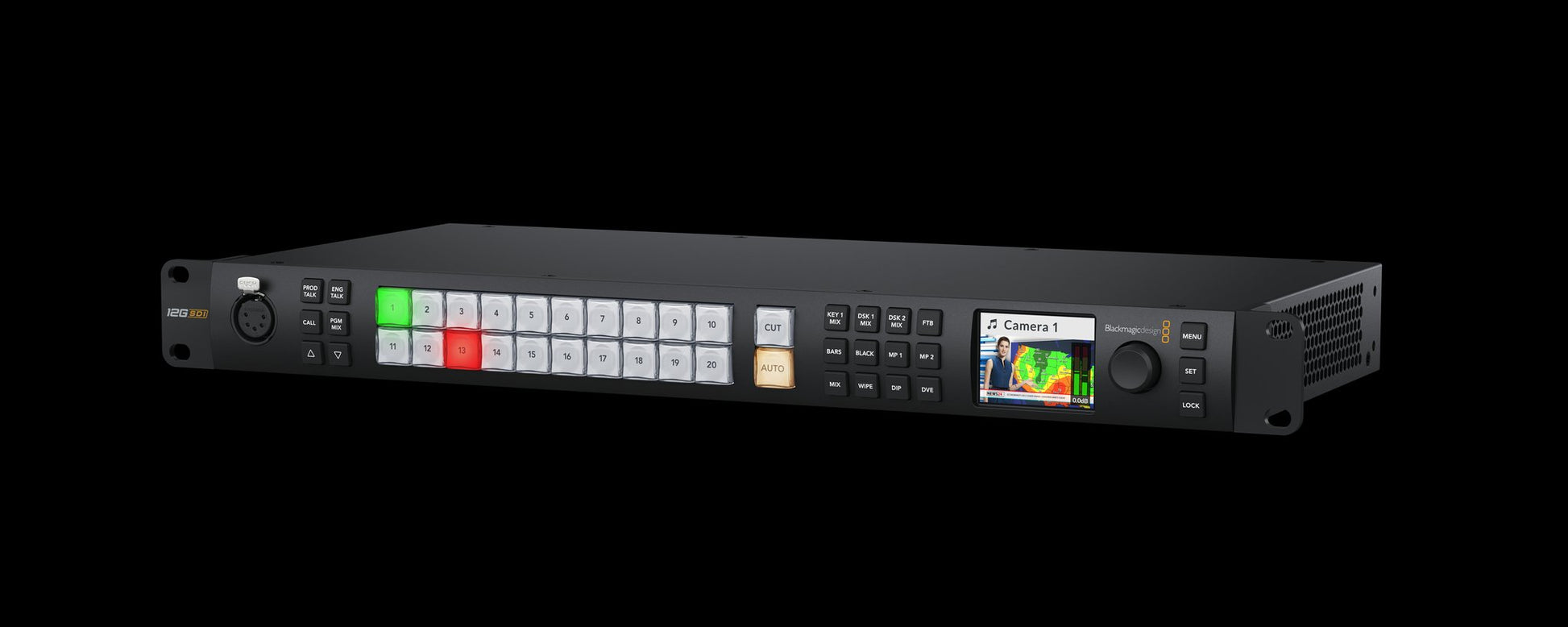

ATEM 2 M/E Constellation 4K

ATEM 2 M/E Constellation 4K

ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted 12G-SDI inputs, 12 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players, USB webcam output and a SuperSource for a total of 6 DVEs. You even get built in talkback and a professional 48 channel Fairlight audio mixer with EQ and dynamics!

Technical specifications

• Total Video Inputs: 20
• Total Video Outputs: 12
• SDI Rates: 1.5G, 3G, 6G, 12G
• Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
• Total Audio Outputs: 1 x 5 pin XLR Talkback.
• SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs.
• SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
• Timecode Connections: None
• Reference Input: Tri-Sync or Black Burst.
• Video Input Re-Sync: On all 20 inputs.
• Frame Rate and Format Converters: On all 20 inputs.
• SDI Aux Outputs: Any of the 12 SDI outputs.
• SDI Preview Outputs: Any of the 12 SDI outputs.
• SDI Preview Outputs: Any of the 12 SDI outputs.
• Down Converted SDI Program Output: 1
• Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
• Total Multi Views: 2 x 12G-SDI
• Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
• Internal Timecode Generator: Yes
• Talkback: RJ45 for 3rd party talkback systems.
• Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
• Ethernet: Supports 10/100/1000 BASE-T.
• Computer Interface: 1 x USB-C supports USB 2.0
• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
• Video Sampling: 4:2:2
• Color Precision: 10-bit.
• Color Space: Rec. 709, Rec. 2020
• SDI Auto Switching: Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
• Upstream Keyers: 8
• Downstream Keyers: 2
• Advanced Chroma Keyers: 8
• SuperSource: 1
• DVEs: 2
• Linear/Luma Keyers: 11
• Transition Keyer (Stinger/DVE): 2 Stinger, 2 DVE.
• Total Number of Layers: 15
• Pattern Generators: 11

For further information, see Blackmagic Design.
