Product information
Overview

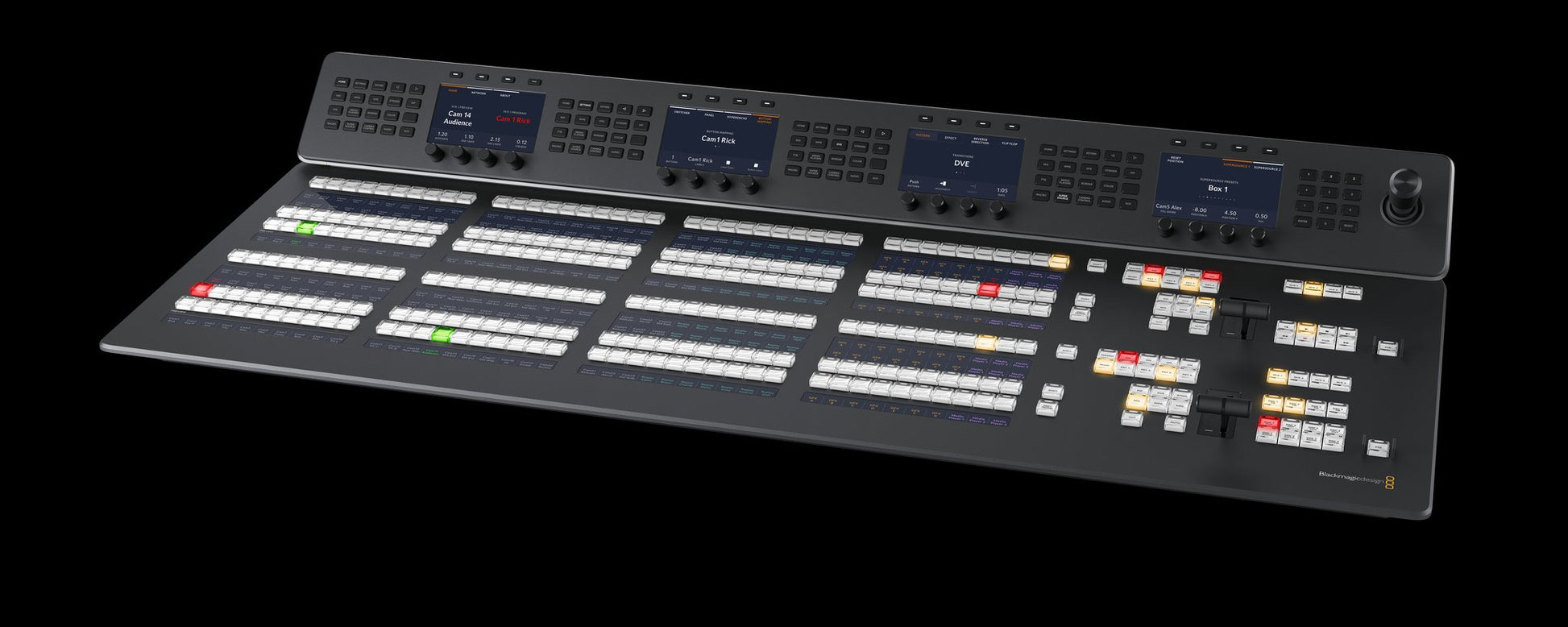

ATEM 2 M/E Advanced Panel 40
The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Technical specifications
- Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
- Software Updates: 1 x USB-C for firmware updates.
- Number of Mix Effects Rows: 2
- Direct Cross Points: 40
- Shifted Cross Points: 80
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 6 rows 24 character LCD
- On-Air indicator: 12
- Power Status Indicators: None
- DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
- Preview Transition: 2
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 4
- Menu Control: 4 x 20 buttons
- Dedicated Macro Buttons: 2 x 40
- Transport Control Buttons: 8
- Destination Bus: 2
- Source Select Bus: 2
- Fader Bar: 2
- 3 Axis Joystick: 1
- Numeric Keypad: 1
- Software Applications: ATEM Software Control Panel.
- Input Voltage: 2 x Internal 100 - 240V AC.
- Redundant Power: Yes
- Power Usage 160W Physical Specifications Environmental Specifications Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: Up to 95%
For further information, see Blackmagic Design.
